Branson 4020

The Branson 4020 is a tractor produced by Branson. It is equipped with a 109.5 ci 1.8 L engine. The listed engine power is Diesel (gross): 40 hp / 29.8 kW. Transmission: 12 forward and reverse. Operating weight: 3,624 lbs 1643 kg.

Engine Power
Diesel (gross): 40 hp / 29.8 kW
Fuel & Capacities
10.6 gal 40.1 L
Transmission
12 forward and reverse
Operating Weight
3,624 lbs 1643 kg

Overview

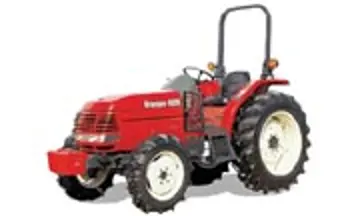

Branson 4020 tractor photo
2002 - 2004
Production
Manufacturer
Branson
Branson 4020 Engine
Kukje 1.8L 3-cyl diesel
Fuel tank
10.6 gal 40.1 L
Engine details ...
Branson 4020 Transmission
12-speed synchronized shuttle
Transmission details ...
Branson 4020 Power
Engine (gross)
40 hp 29.8 kW
PTO (claimed)
36 hp 26.8 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
ROPS.
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO
transmission
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
68.8 inches 174 cm
Weight
3,624 lbs 1643 kg
Front tire
8-18
Rear tire
12.4-28
Full dimensions and tires ...

Engine

Engine Detail — 109.5 ci / 1.8 L Diesel

Manufacturer
Kukje 3T90L-ATC
Configuration
turbocharged diesel, 3-cylinder, liquid-cooled
Displacement
109.5 ci 1.8 L
Bore/Stroke
3.543x3.70 inches 90 x 94 mm
Power (gross)
40 hp 29.8 kW
Air cleaner
dry element
Compression
21:1
Rated RPM
2600
Starter type
electric

Transmission

Transmission — 12 forward and reverse synchronized shuttle

Type
synchronized shuttle
Gears
12 forward and reverse

Dimensions

Branson 4020 Tires
Ag front
8-18
Ag rear
12.4-28
Dimensions
Wheelbase
68.8 inches 174 cm
Length
129.7 inches 329 cm
Width
60 inches 152 cm
Height (ROPS)
86.4 inches 219 cm
Weight
3,624 lbs 1643 kg
Ground clearance
12.2 inches 30 cm
Front tread
48.8 inches 123 cm
Rear tread
82.7 inches 210 cm

Photos

Branson 4020 tractor photo

Branson 4020 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 4020 based on its 40 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 4020.

Estimated Continuous Field Runtime: 5.1 hrs

Approximately 5.1 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).

Estimated 75% Load Fuel Burn~2.1 gal/hr (7.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 4020 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 4020.

Converted Equivalents:

Horsepower (HP)40 hp
Kilowatts (kW)29.8 kW
Metric Horsepower (PS / CV)40.6 PS
