Branson 4820C
 | 2021 -
Compact Utility tractor |
|---|---|
2021 - | |
Compact Utility tractor | |
2021 - | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Branson (a part of TYM) |
Compact Utility tractor | |
Variants | |
|---|---|
4820R | ROPS shuttle |
4820H | ROPS hydrostatic |
4820C | Cab shuttle |
4820CH | Cab hydrostatic |
Branson 4820C Engine | |
|---|---|
Kukje 2.3L 4-cyl diesel | |
Fuel tank | 11.8 gal
44.7 L |
Engine details ...  | |
Branson 4820C Transmission | |
|---|---|
16-speed synchronized shuttle | |
Transmission details ...  |
Branson 4820C Power | |
|---|---|
Engine | 48 hp
35.8 kW |
PTO (claimed) | 36 hp
26.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard. |

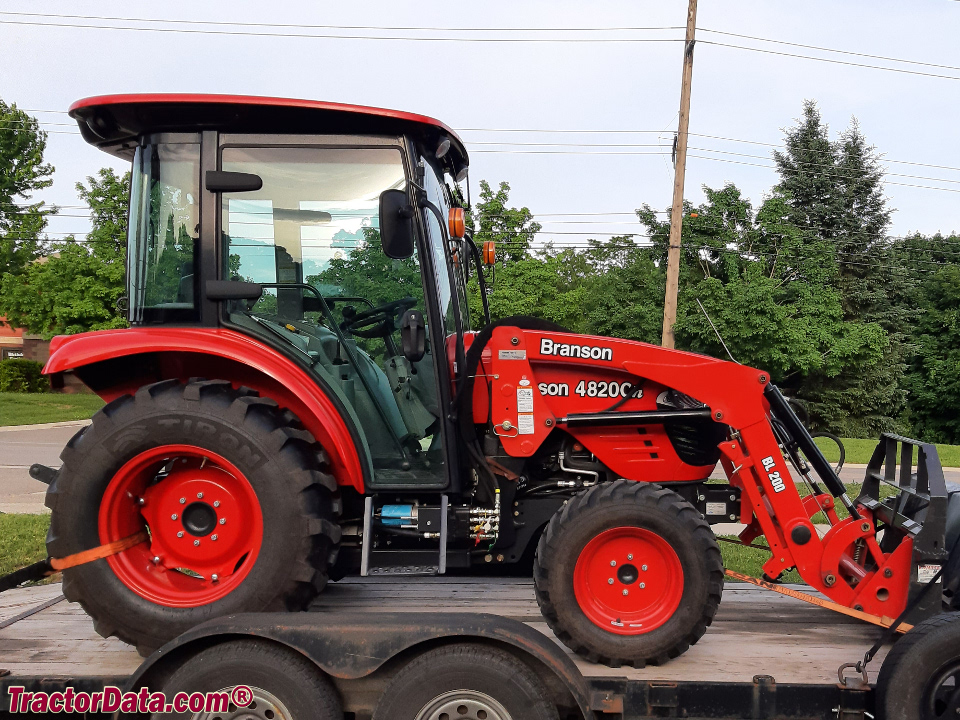

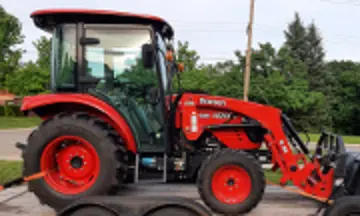

Photos | |
|---|---|
 | |
Branson 4820C photos...  |
Hydraulics | |
|---|---|
Pump flow | 16.1 gpm
60.9 lpm |
Steering flow | 5 gpm
18.9 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 584@2600 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.1 inches
180 cm |
Weight | 4349 lbs
1972 kg |
Front tire | 9.5-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Branson 4820C attachments | |
|---|---|
front-end loader | |
backhoe | |
Attachment details ...  |
References | |
|---|---|
 | |
20 Series Cabs published in 2021, by Branson |
