Buhler Versatile 435

The Buhler Versatile 435 is a tractor produced by Buhler Versatile. It is equipped with a 915 ci 15.0 L engine. The listed engine power is Diesel (listed): 435 hp / 324.4 kW. Transmission: powershift. Operating weight: 42,000 lbs 19051 kg.

Engine Power

Diesel (listed): 435 hp / 324.4 kW

Fuel & Capacities

350 gal 1324.8 L

Transmission

powershift

Operating Weight

42,000 lbs 19051 kg

Overview

	2004 - 2008 HHT SeriesFour-wheel Drive (4WD) tractor HHT Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	Buhler Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada

Buhler Versatile 435 Engine
Cummins 15.0L 6-cyl diesel
Engine details ...

Buhler Versatile 435 Power
Engine	435 hp 324.4 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Dual dry caliper brakes
Cab standard with heat and A/C.

Capacity
Fuel	350 gal 1324.8 L
Hydraulic system	30 gal 113.6 L

Hydraulics
Type	closed center load sensing
Capacity	30 gal 113.6 L
Pressure	2900 psi 200.0 bar
Valves	4 to 8
Total flow	55 gpm 208.2 lpm
	80 gpm (optional HydraFlow) 302.8 lpm

Power Take-off (PTO)
Rear PTO	optional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	154 inches 391 cm
Weight	42,000 lbs 19051 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	160
Batteries	3
Battery CCA	950
Battery volts	12

Engine

Engine Detail — 915 ci / 15.0 L Diesel

Manufacturer	Cummins QSX15
Configuration	turbocharged aftercooled diesel, 6-cylinder, liquid-cooled
Displacement	915 ci 15.0 L
Bore/Stroke	5.40x6.70 inches 137 x 170 mm
Power	435 hp 324.4 kW
Torque	1475 lb-ft 2000.1 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	46.4 qts 43.9 L
Coolant capacity	88 qts 83.3 L

Transmission

Transmission options
12-speed
16-speed

Transmission — partial synchro

Transmission	partial synchro
Gears	12 forward and 4 reverse
Four synchronized gears in each of three ranges

Transmission — powershift

Transmission	powershift
Gears	16 forward and 4 reverse
Caterpillar electro-hydraulic power shift

Dimensions

Buhler Versatile 435 Tires

Dimensions
Wheelbase	154 inches 391 cm
Length	299 inches 759 cm
Height (cab)	143 inches 363 cm
Height (exhaust)	155 inches 393 cm
Shipping weight	42,000 lbs 19051 kg
Max weight	43,500 lbs 19731 kg
Ground clearance	21.9 inches 55 cm

Photos

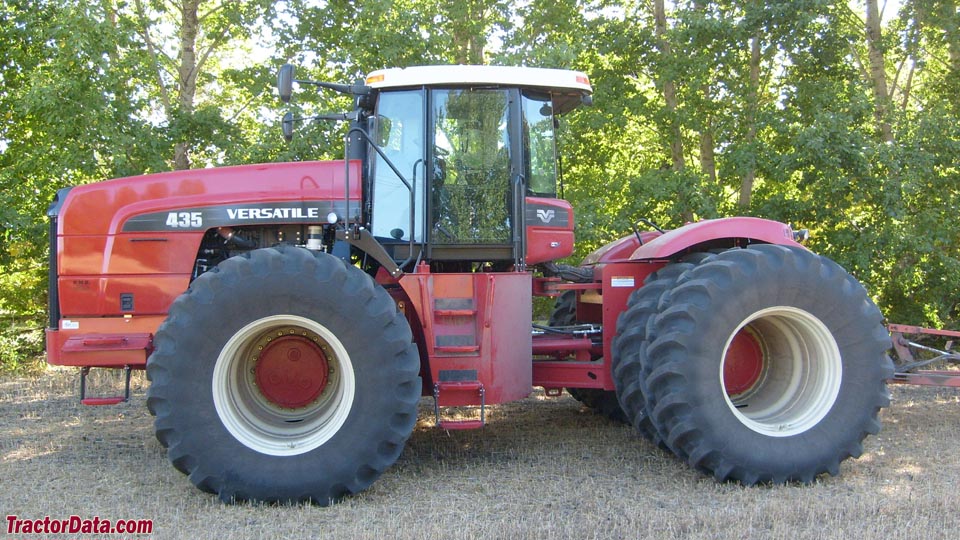

Buhler Versatile 435

Recommended Implements & Sizing Guide

Engineering recommendations for Buhler Versatile 435 based on its 435 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Buhler Versatile 435.

Estimated Continuous Field Runtime: 15.5 hrs

Approximately 15.5 hours of continuous field operation at ~75% rated power on a full tank (350 gal / 1324.9 L).

Estimated 75% Load Fuel Burn~22.6 gal/hr (85.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
