Carraro 720.5
The Carraro 720.5 is a tractor produced by Carraro. It is equipped with a 235.6 ci 3.9 L engine. The listed engine power is Diesel (listed): 64.1 hp / 47.8 kW. Transmission: 16 forward and 8 reverse. Drive type: crawler.
Engine Power
Diesel (listed): 64.1 hp / 47.8 kW
Drive & Traction
crawler
Fuel & Capacities
Diesel
Transmission
16 forward and 8 reverse
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Carraro |
Built in Italy | |
Carraro 720.5 Engine | |
|---|---|
Perkins 3.9L 4-cyl diesel | |
Engine details ...  |
Carraro 720.5 Power | |
|---|---|
Engine | 64.1 hp
47.8 kW |
Mechanical | |
|---|---|
Drive | crawler |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tracks | |
|---|---|
Tracks | |
Full dimensions and tracks ...  |
Engine
Engine Detail — 235.6 ci / 3.9 L Diesel
Manufacturer | Perkins 4.236DR |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 235.6 ci
3.9 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Power | 64.1 hp
47.8 kW |
Rated RPM | 2300 |
Transmission
Transmission options | |
|---|---|
8-speed | |
16-speed |
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
Transmission — 16 forward and 8 reverse
Gears | 16 forward and 8 reverse |
Dimensions
Carraro 720.5 Tracks |
|---|
Dimensions |
|---|
Photos

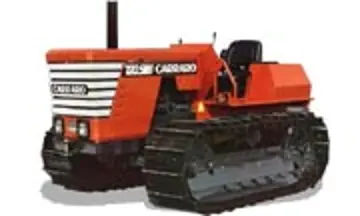

Carraro 720.5 tractor photo
Carraro 720.5 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Carraro 720.5.
Converted Equivalents:
Horsepower (HP)64.1 hp
Kilowatts (kW)47.8 kW
Metric Horsepower (PS / CV)65 PS
