CaseIH 1056 XL
The CaseIH 1056 XL is a tractor produced by Caseih. It is equipped with a 358 ci 5.9 L engine. The listed engine power is Diesel (listed): 105 hp / 78.3 kW. Transmission: IH-Total-synchron. Operating weight: 9634 to 10470 pounds.
Engine Power
Diesel (listed): 105 hp / 78.3 kW
Fuel & Capacities
Diesel
Transmission
IH-Total-synchron
Operating Weight
9634 to 10470 pounds
Overview
 | 1985 - 1992
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Utility tractor | |
Built in Neuss, Germany | |
CaseIH 1056 XL Engine | |
|---|---|
International Harvester 5.9L 6-cyl diesel | |
Engine details ...  |
CaseIH 1056 XL Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
CaseIH 1056 XL Power | |
|---|---|
Engine | 105 hp
78.3 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with heat. Air-conditioning optional. |
Hydraulics | |
|---|---|
Pressure | 2538 psi
175.0 bar |
Valves | up to 3 |
Pump flow | 11.9 gpm
45.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 9532 lbs
4323 kg |
11530 lbsOptOptional
5230 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 103.5 inches
262 cm |
4WD Wheelbase | 102 inches
259 cm |
Weight | 9634 to 10470 pounds |
Front tire | 7.50-20 |
Rear tire | 18.9R38 (2WD) |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery volts | 12 |
References | |
|---|---|
 | |
856XL - 956LX - 1056XL published by CaseIH | |
856XL - 956LX - 1056XL published in 1985, by CaseIH |
Engine
Engine Detail — 358 ci / 5.9 L Diesel
Manufacturer | International Harvester D-358 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 358 ci
5.9 L |
Bore/Stroke | 3.875x5.0625 inches
98 x 129 mm |
Power | 105 hp
78.3 kW |
Fuel system | direct injection |
Rated RPM | 2300 |
Torque | 273.6 lb-ft
371.0 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 12.7 qts
12.0 L |
Oil change | 200 h |
Transmission
Transmission — IH-Total-synchron
Transmission | IH-Total-synchron |

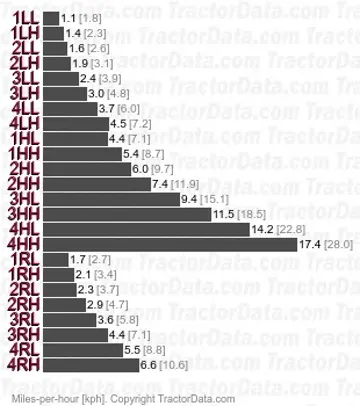

Gears | 16 forward and 8 reverse |
With 16.9R38 rear tires. | |
 | |
Dimensions
CaseIH 1056 XL Tires | |
|---|---|
Standard tires (ag) | Front: 7.50-20. Rear: 18.9R38 (2WD) |
Front: 13.6R28. Rear: 18.4R38 (4WD) | |
Dimensions | |
|---|---|
2WD Wheelbase | 103.5 inches
262 cm |
4WD Wheelbase | 102 inches
259 cm |
2WD Length | 165.1 inches
419 cm |
4WD Length | 167.7 inches
425 cm |
Width | 90.8 inches
230 cm |
Height (cab) | 110 inches
279 cm |
2WD Weight | 9634 lbs
4369 kg |
4WD Weight | 10470 lbs
4749 kg |
2WD Clearance (front axle) | 21.2 inches
53 cm |
4WD Clearance (front axle) | 18 inches
45 cm |
Front tread | 60.1 to 75.2 inches
152 to 191 cm (2WD) |
Front tread | 64.3 to 76 inches
163 to 193 cm (4WD) |
Rear tread | 67.1 to 86.8 inches
170 to 220 cm (4WD) |
Photos
CaseIH 1056 XL
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 1056 XL based on its 105 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 1056 XL.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 1056 XL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 1056 XL.
Converted Equivalents:
Horsepower (HP)105 hp
Kilowatts (kW)78.3 kW
Metric Horsepower (PS / CV)106.5 PS
Direct Competitor Comparison
Compare CaseIH 1056 XL against same-era industry alternatives in the same horsepower class.
Current Model
Caseih
CaseIH 1056 XL
Engine Power:Diesel (listed): 105 hp / 78.3 kW
★ Baseline Reference
