CaseIH 5130 Maxxum

The CaseIH 5130 Maxxum is a tractor produced by Caseih. It is equipped with a 359 ci 5.9 L engine. The listed engine power is Diesel (listed): 105 hp / 78.3 kW. Transmission: 24 forward and 20 reverse. Operating weight: 9458 to 10582 pounds.

Engine Power

Diesel (listed): 105 hp / 78.3 kW

Fuel & Capacities

44.9 gal 169.9 L

Transmission

24 forward and 20 reverse

Operating Weight

9458 to 10582 pounds

Overview

	1990 - 1997 Maxxum SeriesUtility tractor Maxxum Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Neuss, Germany

CaseIH 5130 Engine
CDC 5.9L 6-cyl diesel
Engine details ...

CaseIH 5130 Power
Engine	105 hp 78.3 kW
PTO (claimed)	86 hp 64.1 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Power steering
Wet disc brakes
Two-post ROPS. Cab optional with air-conditioning.

Capacity
Fuel	44.9 gal 169.9 L
Hydraulic system	20.1 gal 76.1 L

Hydraulics
Capacity	20.1 gal 76.1 L
Pressure	2756 psi 190.0 bar
Pump flow	20.7 gpm 78.3 lpm

Tractor hitch
Rear Type	II
Control	electro-hydraulic lower-link draft sensing
Rear lift (at 24"/610mm)	7700 lbs 3492 kg
Front Hitch	II OptOptional
Front lift (at 24"/610mm)	5200 lbs 2358 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1870
	1000@2200

Dimensions & Tires
2WD Wheelbase	103.7 inches 263 cm
4WD Wheelbase	101.8 inches 258 cm
Weight	9458 to 10582 pounds
Front tire	14.9R24
Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	65
Battery volts	12
Battery AH	105

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	CDC 6-590
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.02x4.72 inches 102 x 120 mm
Power	105 hp 78.3 kW
Fuel system	direct injection
Compression	17:1
Rated RPM	2200
Idle RPM	850-2355
Torque	284.7 lb-ft 386.1 Nm
Torque RPM	1100
Starter	electric
Starter volts	12
Oil capacity	15.85 qts 15.0 L
Coolant capacity	22 qts 20.8 L

Transmission

Transmission options
16-speed power shuttle
16-speed four-speed power shift
24-speed creeper

Transmission — 16 forward and 12 reverse power shuttle

Type	power shuttle
Gears	16 forward and 12 reverse
Four synchronized gears gears in four synchronized ranges with power shuttle.

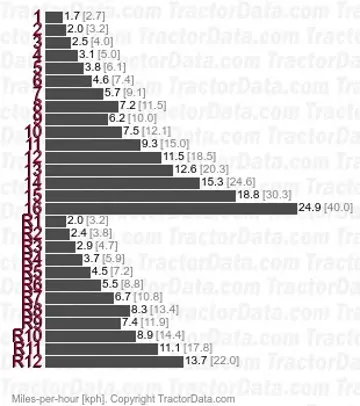

Transmission — 16 forward and 12 reverse four-speed power shift

Type	four-speed power shift
Gears	16 forward and 12 reverse
Four power shift gears in four synchronized ranges with power shuttle.

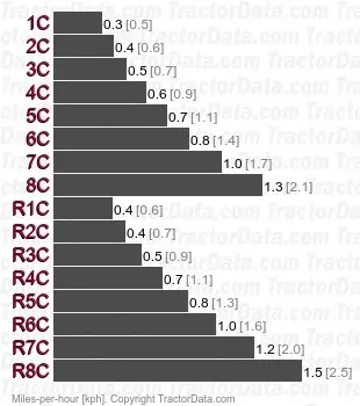

Transmission
Type	creeper
Gears	24 forward and 20 reverse

Dimensions

CaseIH 5130 Tires
Standard tires (ag)	Front: 14.9R24. Rear: 16.9R38

Dimensions
2WD Wheelbase	103.7 inches 263 cm
4WD Wheelbase	101.8 inches 258 cm
Length	175.3 inches 445 cm
Width	86.8 inches 220 cm
Height (cab)	106.1 inches 269 cm
Ground clearance	18 inches 45 cm
Flange rear axle
Bar rear axle
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	60 to 88 inches 152 to 223 cm (flange axle)
Rear tread	60 to 100 inches 152 to 254 cm (bar axle)

CaseIH 5130 Weight
2WD ROPS Shipping	9458 lbs 4290 kg
4WD Cab Shipping	10582 lbs 4799 kg
Max capacity	16535 lbs 7500 kg

Photos

CaseIH 5130 Maxxum

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih 5130 Maxxum based on its 105 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 5130 Maxxum.

Estimated Continuous Field Runtime: 8.2 hrs

Approximately 8.2 hours of continuous field operation at ~75% rated power on a full tank (44.9 gal / 170 L).

Estimated 75% Load Fuel Burn~5.5 gal/hr (20.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
