CaseIH 7150

The CaseIH 7150 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 216.83 hp 161.7 kW. Transmission: 24 forward and 6 reverse. Operating weight: 18,587 lbs 8431 kg.

Overview

	1990 - 1993 Magnum SeriesRow-Crop tractor
1990 - 1993
Magnum Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price	$115,000 (1993)

CaseIH 7150 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 7150 Power
PTO (claimed)	215 hp 160.3 kW
Drawbar (tested)	190.56 hp 142.1 kW
PTO (tested)	240.99 hp 179.7 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Silent Guardian II Cab standard with air-conditioning. Optional radio/tape deck.

Capacity
Fuel	95 gal 359.6 L
Hydraulic system	50.5 gal 191.1 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	50.5 gal 191.1 L
Pressure	2600 psi 179.3 bar
Valves	2 to 4
Pump flow	22 gpm 83.3 lpm
Total flow	29 gpm 109.8 lpm

Tractor hitch
Rear Type	III
Control	electronic lower link
Rear lift	12720 lbs 5769 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	1000 (1.75)
Engine RPM	1000@2200

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	18,587 lbs 8431 kg
Front tire	16.9-26
Rear tire	20.8-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	2
Battery volts	12

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
18-speed full powershift
24-speed

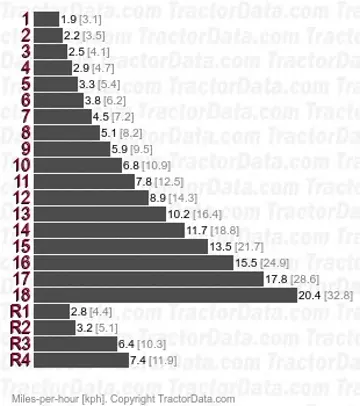

Transmission — 18 forward and 4 reverse full powershift

Type	full powershift
Gears	18 forward and 4 reverse
Clutch	wet disc

Transmission — 24 forward and 6 reverse

Gears

24 forward and 6 reverse

Dimensions

CaseIH 7150 Tires
Ag front	16.9-26
Ag rear	20.8-38

Dimensions
Wheelbase	118.3 inches 300 cm
Operating weight	18,587 lbs 8431 kg
Ballasted weight	25,980 lbs 11784 kg

Tests

OCED Tractor Test 1663
Diesel 18-speed 4WD November 3 - 13, 1992 Link: OCED Tractor Test 1663 file
PTO performance
Max power	240.99 hp 179.7 kW
Fuel use	13.1 gal/hour 49.6 l/hour
Power at rated engine speed	216.83 hp 161.7 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Drawbar performance
Max power	190.56 hp 142.1 kW
Fuel use	12.5 gal/hour 47.3 l/hour
Gear 7 used for power test.
Max pull	19,098 lbs 8662 kg
Gear 6 used for pull test.

Photos

CaseIH 7150 tractor photo
