CaseIH 7250

The CaseIH 7250 is a tractor produced by Caseih. It is equipped with a 504.5 ci 8.3 L engine. The rated power output is 216.90 hp 161.7 kW. Transmission: 24 forward and 6 reverse. Operating weight: 17445 to 18140 pounds.

Overview

	1994 - 1996 Magnum 7200 SeriesRow-Crop tractor
1994 - 1996
Magnum 7200 Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $112,000 in 1996

CaseIH 7250 Engine
CDC 8.3L 6-cyl diesel
Engine details ...

CaseIH 7250 Power
PTO (claimed)	215 hp 160.3 kW
Drawbar (tested)	187.40 hp 139.7 kW
PTO (tested)	242.97 hp 181.2 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	electric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	95 gal 359.6 L
Hydraulic system	45.5 gal 172.2 L

Hydraulics
Type	closed center pressure flow compensated (PFC)
Capacity	45.5 gal 172.2 L
Pressure	2300 psi 158.6 bar
Valves	3 or 4
SCV flow	22 gpm 83.3 lpm
Total flow	29 gpm 109.8 lpm

Tractor hitch
Rear Type	III
Control	electronic lower-link draft sensing
Rear lift	14950 lbs 6781 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)

Dimensions & Tires
Wheelbase	118.3 inches 300 cm
Weight	17445 to 18140 pounds
Front tire	16.9-28
Rear tire	20.8R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	110
Charging volts	12
Batteries	2
Battery CCA	950
Battery volts	12

References
Magnum 7200 Series published in 1996, by CaseIH

Engine

Engine Detail — 504.5 ci / 8.3 L Diesel

Manufacturer	CDC
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	504.5 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Fuel system	mechanical injection
Air cleaner	dual paper elements
Pre-heating	block heater OptOptional
Compression	16.5:1
Rated RPM	2200
Starter volts	12
Oil capacity	22 qts 20.8 L
Coolant capacity	31 qts 29.3 L

CaseIH 7250 Engine

Transmission

Transmission options
18-speed full power shift
24-speed creeper

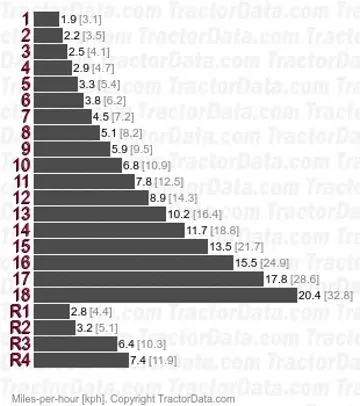

Transmission — 18 forward and 4 reverse full power shift

Type	full power shift
Gears	18 forward and 4 reverse
Clutch	hydraulic wet disc
Transmission
Type	creeper
Gears	24 forward and 6 reverse

Dimensions

CaseIH 7250 Tires
Ag front	16.9-28
Ag rear	20.8R-38

Dimensions
Wheelbase	118.3 inches 300 cm
Shipping weight	17445 lbs 7913 kg
Operating weight	18140 lbs 8228 kg
Clearance (front axle)	19.5 inches 49 cm
Rear axle	4.0 by 120 inches 101 by 3048 mm
Front tread	60 to 95 inches 152 to 241 cm

Tests

OCED Tractor Test 1712
Diesel 18-speed 4WD May 7 - 13, 1996 Link: OCED Tractor Test 1712 file
PTO performance
Max power	242.97 hp 181.2 kW
Fuel use	13.2 gal/hour 50.0 l/hour
Power at rated engine speed	216.90 hp 161.7 kW
Fuel use	12.7 gal/hour 48.1 l/hour
Drawbar performance
Max power	187.40 hp 139.7 kW
Fuel use	12.7 gal/hour 48.1 l/hour
Gear 8 used for power test.
Max pull	17776 lbs 8063 kg
Gear 6 used for pull test.
