CaseIH 9350
The CaseIH 9350 is a tractor produced by Caseih. It is equipped with a 660.3 ci 10.8 L engine. The listed engine power is Diesel (gross): 310 hp / 231.2 kW. Transmission: Hi-Lo SynchroShift. Operating weight: 28720 to 29600 pounds.
Engine Power
Diesel (gross): 310 hp / 231.2 kW
Fuel & Capacities
200 gal
757.0 L
Transmission
Hi-Lo SynchroShift
Operating Weight
28720 to 29600 pounds
Overview
 | 1996 - 1999
9300 SeriesFour-wheel Drive (4WD) tractor
9300 Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | CaseIH |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $125,000 in 1999 | |
CaseIH 9350 Engine | |
|---|---|
Cummins 10.8L 6-cyl diesel | |
Fuel tank | 200 gal
757.0 L |
Engine details ...  | |
CaseIH 9350 Power | |
|---|---|
Engine (gross) | 310 hp
231.2 kW |
PTO (claimed) | 266 hp
198.4 kW |
Drawbar (tested) | 246.21 hp
183.6 kW |
PTO (tested) | 284.25 hp
212.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Articulated power steering | |
Hydraulic disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | closed center |
Pressure | 2900 psi
200.0 bar |
Valves | 4 |
Pump flow | 27 gpm (Power shift)
102.2 lpm |
30 gpm (Synchro shift)
113.6 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift (at 24"/610mm) | 14000 lbs
6350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 137 inches (row-crop)
347 cm |
131 inches (fixed)
332 cm | |
Weight | 28720 to 29600 pounds |
Front tire | 20.8R-38 |
Rear tire | 20.8R-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 125 |
Batteries | 3 |
Battery CCA | 625 |
Battery volts | 12 |
References | |
|---|---|
 | |
Steiger 9300 Series 4WDs published in 1996, by CaseIH | |
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996 |
Engine
Engine Detail — 660.3 ci / 10.8 L Diesel
Manufacturer | Cummins M11-A310 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 660.3 ci
10.8 L |
Bore/Stroke | 4.921x5.787 inches
125 x 147 mm |
Power (gross) | 310 hp
231.2 kW |
Air cleaner | dual paper elements |
Compression | 16.1:1 |
Rated RPM | 2100 |
Idle RPM | 850-2300 |
Starter volts | 12 |
Oil capacity | 38.8 qts
36.7 L |
Oil change | 250 h |
Coolant capacity | 66 qts
62.5 L |
CaseIH 9350 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
12-speed full power shift | |
12-speed synchronized | |
24-speed two-speed power shift |
Transmission — 12 forward and 3 reverse full power shift
Type | full power shift |
Gears | 12 forward and 3 reverse |
Clutch | hydraulic wet disc |
 | |

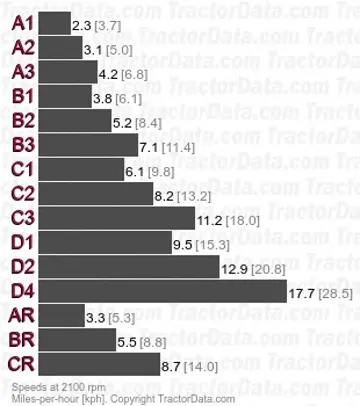

Transmission — SynchroShift
Transmission | SynchroShift |
Type | synchronized |
Gears | 12 forward and 3 reverse |
Clutch | wet disc |
Three synchronized gears (1-3) in four synchronized ranges (A-D). | |
 | |

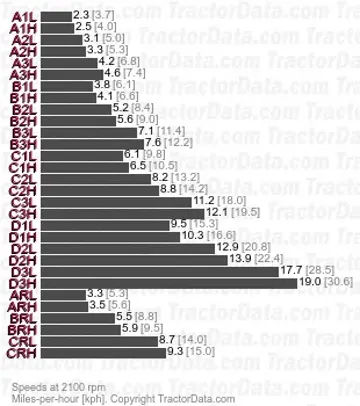

Transmission — Hi-Lo SynchroShift
Transmission | Hi-Lo SynchroShift |
Type | two-speed power shift |
Gears | 24 forward and 6 reverse |
Clutch | wet disc |
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift. | |
 | |
Dimensions
CaseIH 9350 Tires | |
|---|---|
Ag front | 20.8R-38 |
Ag rear | 20.8R-38 |
Dimensions | |
|---|---|
Wheelbase | 137 inches (row-crop)
347 cm |
131 inches (fixed)
332 cm | |
Length | 264 inches
670 cm |
Width | 94 inches*Width at fenders.
238 cm |
Height (exhaust) | 143 inches
363 cm |
Clearance (front axle) | 32 inches
81 cm |
Clearance (drawbar) | 20.1 inches
51 cm |
Front axle | Bar: 4 by 119.5 inches
101 by 3035 mm |
Bar rear axle | 4 by 119.5 inches
101 by 3035 mm |
CaseIH 9350 Weight | |
|---|---|
Shipping | 29600 lbs*With row-crop axle and 20.8x38 single wheels.
13426 kg |
Operating | 28720 lbs
13027 kg |
Max capacity | 34000 lbs
15422 kg |
Tests
OCED Tractor Test 1707 | |
|---|---|
Diesel 12-speed 4WD
April 16 - 23, 1996
Link: OCED Tractor Test 1707 file | |
PTO performance | |
Max power | 284.25 hp
212.0 kW |
Fuel use | 15.0 gal/hour
56.8 l/hour |
Power at rated engine speed | 276.98 hp
206.5 kW |
Fuel use | 16.1 gal/hour
60.9 l/hour |
Drawbar performance | |
Max power | 246.21 hp
183.6 kW |
Fuel use | 15.8 gal/hour
59.8 l/hour |
Gear 5 used for power test. | |
Max pull | 29,577 lbs
13416 kg |
Gear 2 used for pull test. | |
Photos
CaseIH 9350
Recommended Implements & Sizing Guide
Engineering recommendations for Caseih 9350 based on its 310 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih 9350.
Estimated Continuous Field Runtime: 12.4 hrs
Approximately 12.4 hours of continuous field operation at ~75% rated power on a full tank (200 gal / 757.1 L).
Estimated 75% Load Fuel Burn~16.1 gal/hr (61 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Caseih 9350 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih 9350.
Converted Equivalents:
Horsepower (HP)310 hp
Kilowatts (kW)231.2 kW
Metric Horsepower (PS / CV)314.3 PS
