CaseIH 9380

The CaseIH 9380 is a tractor produced by Caseih. It is equipped with a 855 ci 14.0 L engine. The rated power output is 400 hp 298.3 kW. Transmission: Hi-Lo SynchroShift. Operating weight: 31580 lbs 14324 kg.

Overview

	1996 - 2000 9300 SeriesFour-wheel Drive (4WD) tractor
1996 - 2000
9300 Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	CaseIH
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Original price was $156,000 in 1999

Variants
9380	wheeled tractor
9380QT	Quadtrac crawler

CaseIH 9380 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank	270 gal 1022.0 L
Engine details ...

CaseIH 9380 Power
Engine (gross)	400 hp 298.3 kW
PTO (claimed)	345 hp 257.3 kW
Drawbar (tested)	321.75 hp 239.9 kW
PTO (tested)	364.34 hp 271.7 kW
Performance test details ...

Mechanical
Four-wheel drive
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2900 psi 200.0 bar
Valves	4
Pump flow	27 gpm (Power shift) 102.2 lpm
	30 gpm (Synchro shift) 113.6 lpm
Steering flow	31 gpm (Power shift) 117.3 lpm
	34 gpm (Synchro shift) 128.7 lpm

Tractor hitch
Rear Type	IV
Rear lift (at 24"/610mm)	17000 lbs 7711 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	144 inches 365 cm
Weight	31580 lbs 14324 kg
Front tire	20.8R-42
Rear tire	20.8R-42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	125
Batteries	3
Battery CCA	625
Battery volts	12

References
Steiger 9300 Series 4WDs published in 1996, by CaseIH
Product Insight: 9300 STEIGER vs. Agcostar 8360 & 8425 published in 1996

Engine

Engine Detail — 855 ci / 14.0 L Diesel

Manufacturer	Cummins N14-A400
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	855 ci 14.0 L
Bore/Stroke	5.50x6.00 inches 140 x 152 mm
Power (gross)	400 hp 298.3 kW
Compression	16.5:1
Rated RPM	2100
Idle RPM	850-2300
Starter volts	12
Oil capacity	40.8 qts 38.6 L
Oil change	250 h
Coolant capacity	66 qts 62.5 L

CaseIH 9380 Engine

Transmission

Transmission options
12-speed full powershift
12-speed
24-speed

Transmission — 12 forward and 3 reverse full powershift

Type	full powershift
Gears	12 forward and 3 reverse
Clutch	wet disc

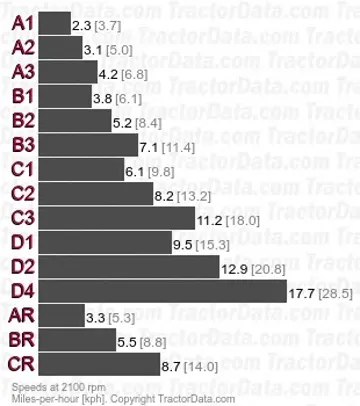

Transmission — SynchroShift

Transmission	SynchroShift
Gears	12 forward and 3 reverse
Clutch	wet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D).

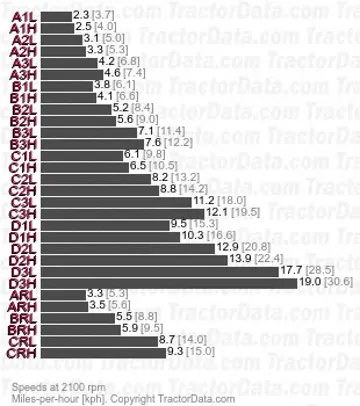

Transmission — Hi-Lo SynchroShift

Transmission	Hi-Lo SynchroShift
Gears	24 forward and 6 reverse
Clutch	wet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift.

Dimensions

CaseIH 9380 Tires
Ag front	20.8R-42
Ag rear	20.8R-42

Dimensions
Wheelbase	144 inches 365 cm
Length	281 inches 713 cm
Width	96 inches*Width at fenders. 243 cm
Height (exhaust)	149.6 inches 379 cm
Operating weight	31580 lbs 14324 kg
Max weight	44000 lbs 19958 kg
Clearance (front axle)	31.5 inches 80 cm
Clearance (drawbar)	19.2 inches 48 cm

Tests

OCED Tractor Test 1714
Diesel 12-speed 4WD May 30 - June 4, 1996 Link: OCED Tractor Test 1714 file
PTO performance
Max power	364.34 hp 271.7 kW
Fuel use	20.4 gal/hour 77.2 l/hour
Power at rated engine speed	360.76 hp 269.0 kW
Fuel use	20.8 gal/hour 78.7 l/hour
Drawbar performance
Max power	321.75 hp 239.9 kW
Fuel use	20.7 gal/hour 78.3 l/hour
Gear 7 used for power test.
Max pull	33,422 lbs 15160 kg
Gear 3 used for pull test.
