CaseIH C100

The CaseIH C100 is a tractor produced by Caseih. It is equipped with a 243.5 ci 4.0 L engine. The rated power output is 94 hp 70.1 kW. Transmission: 16 forward and 8 reverse. Drive type: 4x2 2WD. Operating weight: 5963 to 8280 pounds.

Overview

	1998 - 2002 CX Utility SeriesUtility tractor
1998 - 2002
CX Utility Series
Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Doncaster, England
Original price	$30,500 (1999)

Variants
CX100	deluxe model
C100	basic model

CaseIH C100 Engine
Perkins 4.0L 4-cyl diesel
Engine details ...

CaseIH C100 Power
Engine (gross)	100 hp 74.6 kW
Engine (net)	94 hp 70.1 kW
PTO (claimed)	83 hp 61.9 kW
Drawbar (tested)	74.0 hp 55.2 kW
PTO (tested)	86.2 hp 64.3 kW
Performance test details ...

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	mechanical
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Two-post ROPS with straddle platform.

Capacity
Fuel	20 gal 75.7 L
Hydraulic system	9 gal (2WD) 34.1 L
	9.7 gal (4WD) 36.7 L

Hydraulics
Type	open center
Capacity	9 gal (2WD) 34.1 L
	9.7 gal (4WD) 36.7 L
Pressure	2500 psi 172.4 bar
Valves	0 to 3
Pump flow	12.7 gpm 48.1 lpm
	15 gpm (optional) 56.8 lpm
Total flow	15.7 gpm 59.4 lpm
	18 gpm (optional) 68.1 lpm

Tractor hitch
Rear Type	II/I
Control	mechanical
Rear lift	3,665 lbs 1662 kg
	5,097 lbs (optional) 2311 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540
	540/1000 (optional dual shaft)

Dimensions & Tires
Wheelbase	84.3 inches (2WD) 214 cm
	88 inches (4WD) 223 cm
Weight	5963 to 8280 pounds
Front tire	7.50-16
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery CCA	650
	810 (optional)
Battery volts	12

References
CX Series Tractors published in 1997, by CaseIH

Engine

Engine Detail — 243.5 ci / 4.0 L Diesel

Manufacturer	Perkins 1004.40T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	243.5 ci 4.0 L
Bore/Stroke	3.93x5.00 inches 100 x 127 mm
Power (net)	94 hp 70.1 kW
Power (gross)	100 hp 74.6 kW
Fuel system	mechanical direct injection with 5-hole injectors
Air cleaner	dual paper elements
Compression	17.25:1
Rated RPM	2200
Torque	297 lb-ft 402.7 Nm
Torque RPM	1400
Starter volts	12
Oil capacity	9.3 qts 8.8 L
Oil change	250 h
Coolant capacity	16.9 qts 16.0 L

Transmission

Transmission options
8-speed synchronized
16-speed partial power shift
8-speed
16-speed creeper

Transmission — 8 forward and 4 reverse synchronized

Type	synchronized
Gears	8 forward and 4 reverse
Clutch	12-inch dry disc
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L

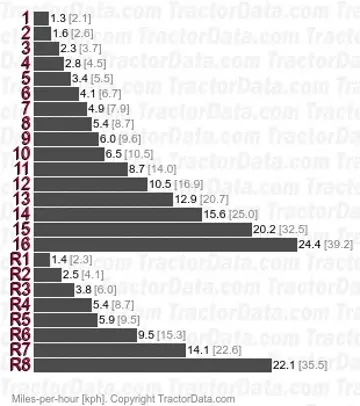

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	12-inch dry disc
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L

Transmission — 8 forward and reverse

Gears	8 forward and reverse
Oil capacity	36 qts (2WD) 34.1 L
	38.6 qts (4WD) 36.5 L
Transmission
Type	creeper
Gears	16 forward and 8 reverse

Dimensions

CaseIH C100 Tires
Ag front	7.50-16
Ag rear	16.9-30

Dimensions
Wheelbase	84.3 inches (2WD) 214 cm
	88 inches (4WD) 223 cm

CaseIH C100 Weight
Shipping	5,963 lbs (2WD) 2704 kg
	6,691 lbs (4WD) 3035 kg
Operating	8,280 lbs 3755 kg
Max capacity	10,150 lbs 4604 kg

Tests

OCED Tractor Test 1899
Diesel 16-speed 4WD August 1998 - September 1998, Link: OCED Tractor Test 1899 file
PTO performance
Power at rated engine speed	86.2 hp 64.3 kW
Fuel use	5.7 gal/hour 21.6 l/hour
Power at rated PTO speed	87.2 hp 65.0 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Drawbar performance
Max power	74.0 hp 55.2 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Gear 3-Low-Direct used for power test.
Max pull	9,160 lbs 4154 kg
Gear 2-Low-Direct used for pull test.
