Deutz-Fahr DX 90

The Deutz-Fahr DX 90 is a tractor produced by Deutz Fahr. It is equipped with a 287.4 ci 4.7 L engine. Transmission: 15 forward and 5 reverse. Operating weight: 9856 to 10650 pounds.

Fuel & Capacities
31.7 gal 120.0 L
Transmission
15 forward and 5 reverse
Operating Weight
9856 to 10650 pounds

Overview

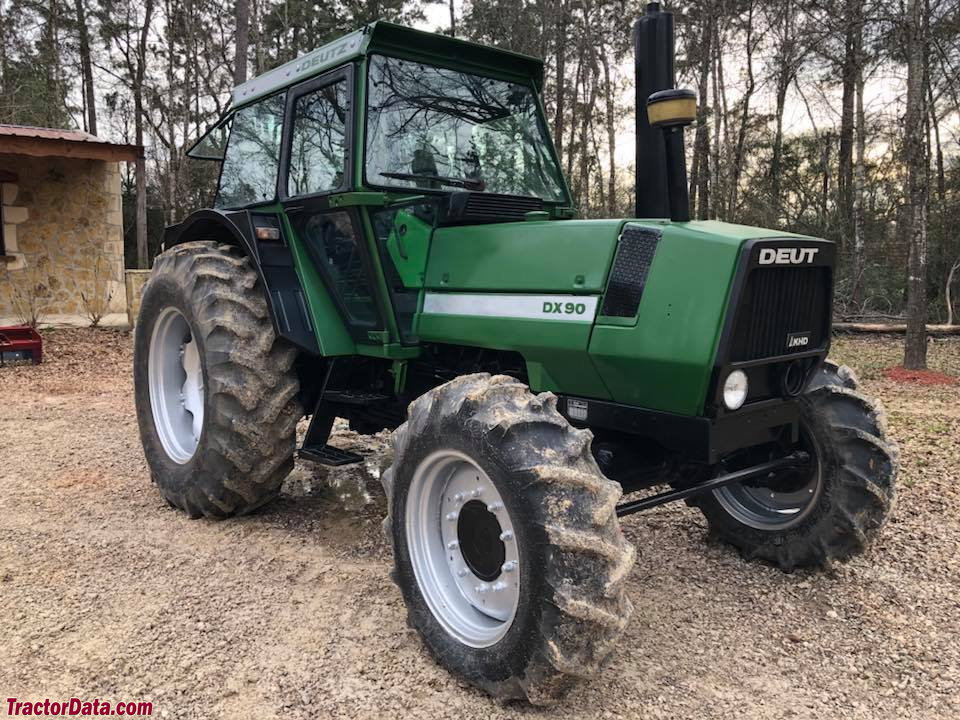

Deutz-Fahr DX 90 tractor photo
1978 - 1982 DX SeriesRow-Crop tractor DX Series Row-Crop tractor
Production
Manufacturer
Deutz-Fahr
Row-Crop tractor
Variants
DX 90
2WD
DX 90A
4WD
Deutz-Fahr DX 90 Engine
Deutz 4.7L 5-cyl diesel
Engine details ...
Deutz-Fahr DX 90 Transmission
15-speed fully synchronized
Transmission details ...
Deutz-Fahr DX 90 Power
PTO (claimed)
84 hp 62.6 kW
Mechanical
Two- or four-wheel drive
Final drives
bull gear
Power steering
Hydraulic dry disc brakes
Cab standard with air-conditioning.
Capacity
Fuel
31.7 gal 120.0 L
Hydraulic system
3.96 gal 15.0 L
Hydraulics
Type
open center
Capacity
3.96 gal 15.0 L
Pump flow
10.4 gpm 39.4 lpm
Tractor hitch
Rear Type
II
Rear lift
7720 lbs 3501 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
wet disc
Rear PTO Type
540/1000 (1.375)
Dimensions & Tires
Wheelbase
100.8 inches 256 cm
Weight
9856 to 10650 pounds
Front tire
10.00-16
2WD Rear tire
18.4x34
Full dimensions and tires ...
References
DX 90 references literature
DX90-DX120-Dx130-DX140-DX160 published in 1980, by Deutz-Fahr

Engine

Engine Detail — 287.4 ci / 4.7 L Diesel

Manufacturer
Deutz F5L 912
Fuel Type
Diesel
Configuration
5-cylinder, air-cooled
Displacement
287.4 ci 4.7 L
Bore/Stroke
3.94x4.72 inches 100 x 120 mm
Rated RPM
2300
Oil capacity
13.7 qts 13.0 L

Transmission

Transmission — 15 forward and 5 reverse fully synchronized

Type
fully synchronized
Gears
15 forward and 5 reverse
Clutch
dry disc
Oil capacity
50.7 qts 48.0 L
Five gears (1-5) in three ranges (low, medium, high).

Dimensions

Deutz-Fahr DX 90 Tires
2WD Standard tires (ag)
Front: 10.00-16. Rear: 18.4x34
4WD Standard tires (ag)
Front: 13.6-24. Rear: 18.4x34
Dimensions
Wheelbase
100.8 inches 256 cm
Length
170.1 inches 432 cm
Height
102.4 inches 260 cm
2WD Weight
9856 lbs 4470 kg
4WD Weight
10650 lbs 4830 kg
Rear tread
59 to 79 inches 149 to 200 cm

Photos

Deutz-Fahr DX 90

Deutz-Fahr DX 90

Deutz-Fahr DX 90

Deutz-Fahr DX 90

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Deutz Fahr Deutz-Fahr DX 90.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
