CaseIH Farmall 95C

The CaseIH Farmall 95C is a tractor produced by Caseih. It is equipped with a 274 ci 4.5 L engine. The listed engine power is Diesel (gross): 95 hp / 70.8 kW. Transmission: 16 forward and reverse. Operating weight: 6614 to 8115 pounds.

Engine Power

Diesel (gross): 95 hp / 70.8 kW

Fuel & Capacities

23.2 gal 87.8 L

Transmission

16 forward and reverse

Operating Weight

6614 to 8115 pounds

Overview

	2008 - 2015 Model year 2008-20122013-2015 Farmall C SeriesUtility tractor Farmall C Series Utility tractor

Production
Manufacturer	CaseIH
Utility tractor
Built in Jesi, Italy
Original price	$43,874 (2011)

Variants
T4050	similar New Holland model

CaseIH Farmall 95C Engine
FPT 4.5L 4-cyl diesel
Fuel tank	23.2 gal 87.8 L
Engine details ...

CaseIH Farmall 95C Power
Engine (gross)	95 hp 70.8 kW
PTO (claimed)	80 hp 59.7 kW
Drawbar (tested)	72.8 hp 54.3 kW
PTO (tested)	89.8 hp 67.0 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Steering	hydrostatic power
Hydraulic wet disc brakes
Straddle deck platform with ROPS. Cab optional.

Hydraulics
Type	open center
Rear valves	1 to 2
Mid valves	0 to 2
Pump flow	16.1 gpm 60.9 lpm
Total flow	25.5 gpm 96.5 lpm
Steering flow	9.4 gpm 35.6 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at 24"/610mm)	3960 lbs 1796 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical dry disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)OptOptional
Engine RPM	540@2206
	1000@2260

Dimensions & Tires
2WD Wheelbase	89 inches 226 cm
4WD Wheelbase	86 inches 218 cm
Weight	6614 to 8115 pounds
Front tire	11.2R24
Rear tire	16.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Battery CCA	730
Battery volts	12

References

Farmall C Series Tractors published in 2011, by CaseIH
Farmall Series Utility Tractors published in 2008, by CaseIH

Engine

Engine Detail — 274 ci / 4.5 L Diesel

Manufacturer	FPT NEF
Configuration	turbocharged intercooled diesel, 4-cylinder, liquid-cooled inline
Displacement	274 ci 4.5 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier III
Power (gross)	95 hp 70.8 kW
Fuel system	Bosch fuel injection pump
Air cleaner	dual dry elements
Pre-heating	thermostart
Compression	17.5:1
Rated RPM	2300
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed mechanical shuttle
16-speed power shuttle

Transmission — 16 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	16 forward and reverse
Clutch	dry disc
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with synchronized mechanical shuttle.

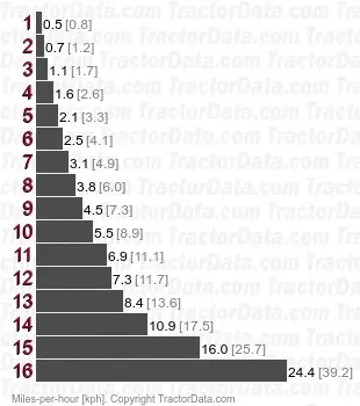

Transmission — 16 forward and reverse power shuttle

Type	power shuttle
Gears	16 forward and reverse
Clutch	wet disc
Four synchronized gears (1-4) in four ranges (L/ML/MH/H) with clutchless power shuttle.

Dimensions

CaseIH Farmall 95C Tires
Ag front	11.2R24
Ag rear	16.9R30
Ag front	12.4R20
	11.2R20
Ag rear	16.9R24
	14.9R28
	16.9R28
Lawn/turf front	13.6-16.1
	12LL-16
Lawn/turf rear	16.9-24
	22.5LL-16.1
Industrial front	12.5/80-18
Industrial rear	19.5L-24
	16.9-24

Dimensions
2WD Wheelbase	89 inches 226 cm
4WD Wheelbase	86 inches 218 cm
Height (ROPS)	77.8 inches 197 cm
Height (cab)	91.4 inches 232 cm

CaseIH Farmall 95C Weight
Shipping	6,614 lbs (ROPS) 3000 kg
	7,055 lbs (cab) 3200 kg
Operating	7,180 lbs (ROPS) 3256 kg
	8,115 lbs (cab) 3680 kg

Tests

OCED Tractor Test 2461
Diesel 16-speed 4WD May 2008 - July 2008, Link: OCED Tractor Test 2461 file
PTO performance
Power at rated engine speed	89.8 hp 67.0 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated PTO speed	89.0 hp 66.4 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Drawbar performance
Max power	72.8 hp 54.3 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Gear 3MH used for power test.
Max pull	7,255 lbs 3290 kg
Gear 2ML used for pull test.

Attachments

Attachment overview
CaseIH L720 loader
CaseIH L730 loader

Photos

CaseIH Farmall 95C tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Farmall 95C based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Farmall 95C.

Estimated Continuous Field Runtime: 4.7 hrs

Approximately 4.7 hours of continuous field operation at ~75% rated power on a full tank (23.2 gal / 87.8 L).

Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
