CaseIH JX65 Maxxima
The CaseIH JX65 Maxxima is a tractor produced by Caseih. It is equipped with a 178.9 ci 2.9 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 20 forward and 12 reverse. Operating weight: 6010 to 6130 pounds.
Engine Power
65 hp
48.5 kW
Fuel & Capacities
24.3 gal
92.0 L
Transmission
20 forward and 12 reverse
Operating Weight
6010 lbs
2726 kg
Caseih JX65 Maxxima Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2006
Model year 2002-20032003-2006
JX SeriesUtility tractorTurk Tractor built |
|---|---|
2002 - 2006 | |
Model year 2002-20032003-2006 | |
JX Series | |
Utility tractor | |
Turk Tractor built | |
Production | |
|---|---|
Distributor | CaseIH |
Manufacturer | Turk Tractor |
Utility tractor | |
Built in Turkey | |
CaseIH JX65 Engine | |
|---|---|
Iveco 2.9L 3-cyl diesel | |
Fuel tank | 24.3 gal
92.0 L |
Engine details ...  | |
CaseIH JX65 Power | |
|---|---|
Engine (gross) | 65 hp
48.5 kW |
PTO (claimed) | 50 hp
37.3 kW |
Drawbar (tested) | 41.5 hp
30.9 kW |
PTO (tested) | 50.7 hp
37.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | hydrostatic power |
Independent wet disc brakes | |
Two-post ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 3 |
Pump flow | 13.6 gpm
51.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 6615 lbs*Advertised. 3620 lbs actual lift during testing
3000 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.4 inches
211 cm |
Weight | 6010 to 6130 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 178.9 ci / 2.9 L Diesel
Manufacturer | Iveco |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 178.9 ci
2.9 L |
Bore/Stroke | 4.094x4.528 inches
104 x 115 mm |
Power (gross) | 65 hp
48.5 kW |
Air cleaner | paper element |
Compression | 17.0:1 |
Rated RPM | 2500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed mechanical shuttle | |
20-speed creeper |

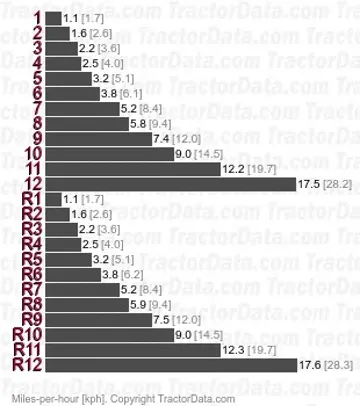

Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Four gears (1-4) in three ranges with mechanical shuttle. | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 12 reverse |
Dimensions
CaseIH JX65 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 83.4 inches
211 cm |
Length | 154.9 inches
393 cm |
Height | 100.3 inches
254 cm |
2WD ROPS Operating weight | 6010 lbs
2726 kg |
4WD ROPS Operating weight | 6130 lbs
2780 kg |
Tests
OCED Tractor Test 2013 | |
|---|---|
179 diesel 12-speed 4WD
March 2002 - May 2002,
Link: OCED Tractor Test 2013 file | |
PTO performance | |
Power at rated engine speed | 50.7 hp
37.8 kW |
Fuel use | 3.0 gal/hour
11.4 l/hour |
Power at rated PTO speed | 47.7 hp
35.6 kW |
Fuel use | 2.7 gal/hour
10.2 l/hour |
Drawbar performance | |
Max power | 41.5 hp
30.9 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Gear 10 used for power test. | |
Max pull | 3680 lbs
1669 kg |
Photos
CaseIH JX65 Maxxima tractor photo
