CaseIH JX85 Maxxima
The CaseIH JX85 Maxxima is a tractor produced by Caseih. It is equipped with a 238.5 ci 3.9 L engine. The rated power output is 71.1 hp 53.0 kW. Transmission: 20 forward and 12 reverse. Operating weight: 6425 to 6995 pounds.
Engine Power
71.1 hp
53.0 kW
Fuel & Capacities
24.3 gal
92.0 L
Transmission
20 forward and 12 reverse
Operating Weight
6425 lbs
2914 kg
Caseih JX85 Maxxima Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2002 - 2006
Model year 2002-20032003-2006
JX SeriesUtility tractorTurk Tractor built |
|---|---|
2002 - 2006 | |
Model year 2002-20032003-2006 | |
JX Series | |
Utility tractor | |
Turk Tractor built | |
Production | |
|---|---|
Distributor | CaseIH |
Manufacturer | Turk Tractor |
Utility tractor | |
Built in Turkey | |
CaseIH JX85 Engine | |
|---|---|
Iveco 3.9L 4-cyl diesel | |
Fuel tank | 24.3 gal
92.0 L |
Engine details ...  | |
CaseIH JX85 Power | |
|---|---|
PTO (claimed) | 70 hp
52.2 kW |
Drawbar (tested) | 58.4 hp
43.5 kW |
PTO (tested) | 71.1 hp
53.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | hydrostatic power |
Independent wet disc brakes | |
Two-post ROPS. Cab optional. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 3 |
Pump flow | 13.6 gpm
51.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7718 lbs*Advertised. 3845 lbs actual lift during testing
3500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/540E |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.7 inches (2WD)
230 cm |
88.5 inches (4WD)
224 cm | |
Weight | 6425 to 6995 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 238.5 ci / 3.9 L Diesel
Manufacturer | Iveco |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 238.5 ci
3.9 L |
Bore/Stroke | 4.094x4.528 inches
104 x 115 mm |
Air cleaner | paper element |
Compression | 17.0:1 |
Rated RPM | 2500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed mechanical shuttle | |
20-speed creeper |

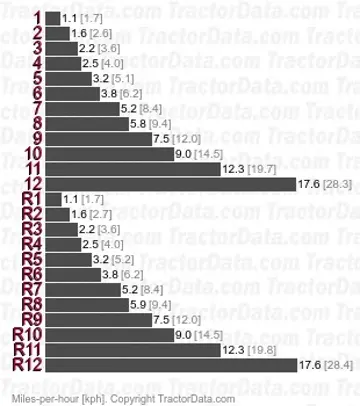

Transmission — 12 forward and reverse mechanical shuttle
Type | mechanical shuttle |
Gears | 12 forward and reverse |
Four gears (1-4) in three ranges with mechanical shuttle. | |
 | |
Transmission | |
Type | creeper |
Gears | 20 forward and 12 reverse |
Dimensions
CaseIH JX85 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 90.7 inches (2WD)
230 cm |
88.5 inches (4WD)
224 cm | |
Length | 161.7 inches
410 cm |
Height | 100.3 inches
254 cm |
2WD Cab Operating weight | 6425 lbs
2914 kg |
4WD Cab Operating weight | 6995 lbs
3172 kg |
Tests
OCED Tractor Test 405 | |
|---|---|
238 diesel 12-speed 4WD
May 2002 - August 2002,
Link: OCED Tractor Test 405 file | |
PTO performance | |
Power at rated engine speed | 71.1 hp
53.0 kW |
Fuel use | 4.2 gal/hour
15.9 l/hour |
Power at rated PTO speed | 65.8 hp
49.1 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 58.4 hp
43.5 kW |
Fuel use | 4.0 gal/hour
15.1 l/hour |
Max pull | 4460 lbs
2023 kg |
Photos
CaseIH JX85 Maxxima tractor photo
