CaseIH Puma 215

The CaseIH Puma 215 is a tractor produced by Caseih. It is equipped with a 410.6 ci 6.7 L engine. The rated power output is 215 hp 160.3 kW. Transmission: EconoGear. Operating weight: 17880 lbs 8110 kg.

Overview

	2011 - 2013 Puma SeriesRow-Crop tractor
2011 - 2013
Puma Series
Row-Crop tractor

Production
Manufacturer	CaseIH
Row-Crop tractor
Built in Basildon, England
During official testing, the Puma 215 was unable to meet advertised claims for hydraulic flow and three-point lift.

CaseIH Puma 215 Engine
FPT 6.7L 6-cyl diesel
Engine details ...

CaseIH Puma 215 Power
Engine (gross)	215 hp 160.3 kW
Engine (max)	260 hp 193.9 kW
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	171.1 hp 127.6 kW
PTO (tested)	210.4 hp 156.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Cab standard. Optional cab suspension.

Capacity
Fuel	104 gal 393.6 L
Exhaust fluid (DEF)	13.2 gal 50.0 L
Hydraulic system	22 gal 83.3 L

Hydraulics
Type	closed center pressure flow compensating (PFC)
Capacity	22 gal 83.3 L
Rear valves	3 to 4 (mechanical)
	3 to 5 (electronic)
Pump flow	32 gpm (powershift) 121.1 lpm
	35 gpm (CVT/opt-PS) 132.5 lpm
	40 gpm (CVT opt) 151.4 lpm
Total flow	49 gpm (powershift) 185.5 lpm
	52 gpm (CVT/opt-PS) 196.8 lpm
	57 gpm (CVT opt) 215.7 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	2/3N
Rear lift	10,200 lbs 4626 kg
	13,400 lbsOptOptional 6078 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	1000 (1.75)
	1000/1000E

Dimensions & Tires
Wheelbase	113.6 inches 288 cm
Weight	17880 lbs 8110 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	200 OptOptional
Battery CCA	1300
Battery volts	12

References
Puma Series Tractors published in 2010, by CaseIH
Puma Series Tractors published in 2011, by CaseIH

Engine

Engine Detail — 410.6 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	410.6 ci 6.7 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Interim Tier 4
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	215 hp 160.3 kW
Maximum Power (gross)	260 hp 193.9 kW
Air cleaner	dual paper elements
Rated RPM	2200
Starter	electric
Starter volts	12
Oil capacity	16 qts 15.1 L

Transmission

Transmission options
18-speed full power shift
19-speed full power shift
continuously variable transmission (CVT)

Transmission — 18 forward and 6 reverse full power shift

Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

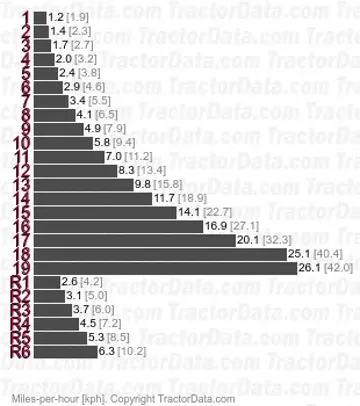

Transmission — EconoGear

Transmission	EconoGear
Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc
Adds transport gear to the power shift, providing road speed at reduced engine RPMs.

Transmission — infinite forward and reverse continuously variable transmission (CVT)

Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

CaseIH Puma 215 Tires

Dimensions
Wheelbase	113.6 inches 288 cm
Operating weight	17880 lbs 8110 kg
Bar rear axle	4.125 by 112 inches 104 by 2844 mm
Bar rear axle	4.125 by 98 inches 104 by 2489 mm
Bar rear axle	4.125 by 119 inches 104 by 3022 mm
Front tread	60 to 88 inches 152 to 223 cm

Tests

OCED Tractor Test 2638
Diesel 19-speed 4WD October 2010 - May 2011, Link: OCED Tractor Test 2638 file
PTO performance
Max power	210.4 hp 156.9 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Power at rated engine speed	191.6 hp 142.9 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Power at rated PTO speed	209.2 hp 156.0 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Drawbar performance
Max power	171.1 hp 127.6 kW
Fuel use	10.5 gal/hour 39.7 l/hour
Gear 10 used for power test.
Max pull	16335 lbs 7409 kg
Gear 8 used for pull test.

Attachments

Attachment overview
Case IH L770 loader
Case IH L780 loader

Photos

CaseIH Puma 215 tractor photo
