CaseIH Puma 225

The CaseIH Puma 225 is a tractor produced by Caseih. It is equipped with a 411 ci 6.7 L engine. The listed engine power is Diesel (listed): 225 hp / 167.8 kW. Transmission: infinite forward and reverse. Operating weight: 16,500 lbs 7484 kg.

Engine Power
Diesel (listed): 225 hp / 167.8 kW
Fuel & Capacities
107 gal 405.0 L
Transmission
infinite forward and reverse
Operating Weight
16,500 lbs 7484 kg

Overview

CaseIH Puma 225 tractor photo
2009 - 2010 Puma SeriesRow-Crop tractor Puma Series Row-Crop tractor
Production
Manufacturer
CaseIH
Row-Crop tractor
Built in Basildon, England
Original price was $161,431 in 2010
CaseIH Puma 225 Engine
CDC 6.7L 6-cyl diesel
Engine details ...
CaseIH Puma 225 Transmission
continuously variable transmission (CVT)
Transmission details ...
CaseIH Puma 225 Power
Engine
225 hp 167.8 kW
PTO (claimed)
195 hp 145.4 kW
Mechanical
Four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Trailer brakes
hydraulic optional
Cab standard.
Capacity
Fuel
107 gal 405.0 L
Hydraulic system
26.5 gal 100.3 L
Hydraulics
Type
pressure flow compensating (PFC)
Capacity
26.5 gal 100.3 L
Valves
3 to 5
Pump flow
39.6 gpm 149.9 lpm
45 gpmOptOptional 170.3 lpm
Total flow
56.6 gpm 214.2 lpm
62 gpmOptOptional 234.7 lpm
Steering flow
17 gpm 64.3 lpm
Tractor hitch
Rear Type
2/3N
Rear lift (at ends)
12,787 lbs 5800 kg
15,873 lbsOptOptional 7199 kg
Rear lift (at 24"/610mm)
10,900 lbs 4944 kg
13,600 lbsOptOptional 6168 kg
Front Hitch
optional
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
1000/1000E
Front PTO
optional
Front PTO Type
1000
Dimensions & Tires
Wheelbase
113.6 inches 288 cm
Weight
16,500 lbs 7484 kg
Front tire
16.9R30
Rear tire
20.8R42
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
150
Battery CCA
1300
Battery volts
12

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer
CDC
Configuration
intercooled turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement
411 ci 6.7 L
Bore/Stroke
4.094x5.197 inches 104 x 132 mm
Emissions
Tier 3
Power
225 hp 167.8 kW
Rated RPM
2200
Starter
electric
Starter volts
12

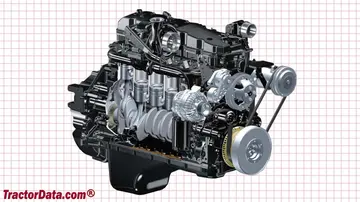

CaseIH Puma 225 Engine
CaseIH Puma 225 engine image

Transmission

Transmission — infinite forward and reverse continuously variable transmission (CVT)

Type
continuously variable transmission (CVT)
Gears
infinite forward and reverse
Puma 225 continuously variable transmission (CVT) speeds

Dimensions

CaseIH Puma 225 Tires
Standard tires (ag)
Front: 16.9R30. Rear: 20.8R42
Dimensions
Wheelbase
113.6 inches 288 cm
Height (cab)
119.7 inches 304 cm
Height (exhaust)
122.6 inches 311 cm
Shipping weight
16,500 lbs 7484 kg
Rear axle
4.125 by 112 inches 104 by 2844 mm
Rear axle
4.125 by 98 inches 104 by 2489 mm (optional)
Rear axle
4.125 by 119 inches 104 by 3022 mm (optional)

Photos

CaseIH Puma 225

CaseIH Puma 225

Case IH Puma 225 CVT transmission controls.

Case IH Puma 225 CVT transmission controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Puma 225 based on its 225 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁Commercial / Field ScaleHigh horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙Commercial / Field ScaleBroad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Puma 225.

Estimated Continuous Field Runtime: 9.1 hrs

Approximately 9.1 hours of continuous field operation at ~75% rated power on a full tank (107 gal / 405 L).

Estimated 75% Load Fuel Burn~11.7 gal/hr (44.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Caseih Puma 225 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Caseih Puma 225.

Converted Equivalents:

Horsepower (HP)225 hp
Kilowatts (kW)167.8 kW
Metric Horsepower (PS / CV)228.1 PS

Direct Competitor Comparison

Compare CaseIH Puma 225 against same-era industry alternatives in the same horsepower class.

Current Model
Caseih

CaseIH Puma 225

Engine Power:Diesel (listed): 225 hp / 167.8 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 8S.205

Engine Power:202.5
Production Years:2020 - 2026
View Full Specs→
Deutz-FahrMarket Competitor

Deutz-Fahr TTV 630

Engine Power:203
Production Years:2008 - 2011
View Full Specs→
FendtMarket Competitor

Fendt 618 Vario

Engine Power:204
Production Years:2023 - 2026
View Full Specs→
DeereMarket Competitor

Deere 7205J

Engine Power:205
Production Years:2010 - 2020
View Full Specs→
