Colt 2110
The Colt 2110 is a tractor produced by Colt Lawn Tractors. It is equipped with a 389 cc 23.75 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: 4 forward and 1 reverse. Operating weight: 640 lbs 290 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
4 forward and 1 reverse
Operating Weight
640 lbs
290 kg
Overview
 | 1966
2000 SeriesGarden tractor
2000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Colt |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Colt 2110 Engine | |
|---|---|
10HP Tecumseh 389cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Colt 2110 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Contracting band brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Drawbar | rigid 1.5 x 0.375 inch bar with three 0.54-inch holes |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 640 lbs
290 kg |
Front tire | 4.00x8 |
Rear tire | 23x8.50x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | starter-generator |
Charging amps | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
For easy card case - Hydra-Drive Colt Compact Tractors published in 1966 | |
Compact Tractor Model 2110 published in 1966, by Colt |
Engine
Engine Detail — 389 cc / 23.75 ci Gasoline
Manufacturer | Tecumseh HH-100 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 389 cc
23.75 ci |
Power (gross) | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Colt 2110 Tires | |
|---|---|
Lawn/turf front | 4.00x8 |
Lawn/turf rear | 23x8.50x12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 66 inches
167 cm |
Width | 34 inches
86 cm |
Height (steering wheel) | 40 inches
101 cm |
Height (hood) | 34 inches
86 cm |
Shipping weight | 640 lbs
290 kg |
Ground clearance | 7 inches
17 cm |
Front axle | Cast-iron |
Rear axle | 1.0 inch diameter
25 mm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

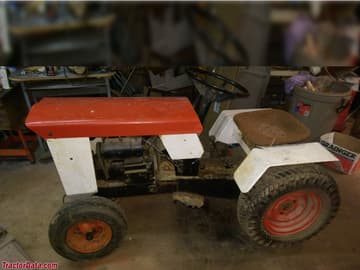

Colt 2110 serial number 660006.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Colt Lawn Tractors Colt 2110.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Colt Lawn Tractors Colt 2110 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Colt Lawn Tractors Colt 2110.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
