Colt Deluxe
The Colt Deluxe is a tractor produced by Colt Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Colt-A-Matic. Operating weight: 660 lbs 299 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Colt-A-Matic
Operating Weight
660 lbs
299 kg
Overview
 | 1965
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Colt |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Colt Deluxe Engine | |
|---|---|
10HP Kohler 391cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Colt Deluxe Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Hydraulic brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 660 lbs
299 kg |
Front tire | 4.00x8 |
Rear tire | 6.00x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 42 |
References | |
|---|---|
 | |
Set the Pace with Colt Compact Tractors published in 1965 |
Engine
Engine Detail — 391 cc / 23.9 ci Gasoline
Manufacturer | Kohler K241 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 391 cc
23.9 ci |
Bore/Stroke | 3.25x2.88 inches
83 x 73 mm |
Power (gross) | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — Colt-A-Matic
Transmission | Colt-A-Matic |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 11 qts
10.4 L |
 | |
Dimensions
Colt Deluxe Tires | |
|---|---|
Lawn/turf front | 4.00x8 |
Lawn/turf rear | 6.00x12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 66 inches
167 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 37 inches
93 cm |
Height (hood) | 33 inches
83 cm |
Weight | 660 lbs
299 kg |
Ground clearance | 7 inches
17 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

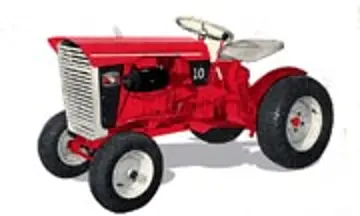

Colt Deluxe tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Colt Lawn Tractors Colt Deluxe.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Colt Lawn Tractors Colt Deluxe Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Colt Lawn Tractors Colt Deluxe.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
