Colt Rancher 10
The Colt Rancher 10 is a tractor produced by Colt Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Colt-A-Matic. Operating weight: 735 lbs 333 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Colt-A-Matic
Operating Weight
735 lbs
333 kg
Overview
 | 1965
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Colt |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Colt Rancher 10 Engine | |
|---|---|
10HP Kohler 391cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Colt Rancher 10 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Hydraulic brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 735 lbs
333 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Set the Pace with Colt Compact Tractors published in 1965 |
Engine
Engine Detail — 391 cc / 23.9 ci Gasoline
Manufacturer | Kohler K241 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 391 cc
23.9 ci |
Bore/Stroke | 3.25x2.88 inches
83 x 73 mm |
Power (gross) | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — Colt-A-Matic
Transmission | Colt-A-Matic |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Colt Rancher 10 Tires |
|---|
Dimensions | |
|---|---|
Length | 66 inches
167 cm |
Width | 40 inches
101 cm |
Height | 44 inches
111 cm |
Weight | 735 lbs
333 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

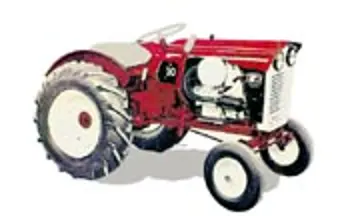

Colt Rancher 10 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Colt Lawn Tractors Colt Rancher 10.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Colt Lawn Tractors Colt Rancher 10 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Colt Lawn Tractors Colt Rancher 10.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
