Colt 2510
The Colt 2510 is a tractor produced by Colt Lawn Tractors. It is equipped with a 389 cc 23.75 ci engine. The listed engine power is Gasoline (gross): 10 hp / 7.5 kW. Transmission: Hydra-Drive. Operating weight: 750 lbs 340 kg.
Engine Power
Gasoline (gross): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Hydra-Drive
Operating Weight
750 lbs
340 kg
Overview
 | 1966
2000 SeriesGarden tractor
2000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Colt |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Colt 2510 Engine | |
|---|---|
10HP Tecumseh 389cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Colt 2510 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Hydra-Brake brakes | |
Open operator station. |
Hydraulics | |
|---|---|
Pump flow | 5 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Drawbar | rigid 1.5 x 0.375 inch bar with three 0.54-inch holes |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 750 lbs
340 kg |
Front tire | 16x6.50x8 |
Rear tire | 23x8.50x15 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | starter-generator |
Charging amps | 12 |
Battery volts | 12 |
References | |
|---|---|
 | |
For easy card case - Hydra-Drive Colt Compact Tractors published in 1966 | |
Compact Tractor Model 2510 published in 1966, by Colt |
Engine
Engine Detail — 389 cc / 23.75 ci Gasoline
Manufacturer | Tecumseh HH-100 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 389 cc
23.75 ci |
Power (gross) | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — Hydra-Drive
Transmission | Hydra-Drive |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Colt 2510 Tires | |
|---|---|
Lawn/turf front | 16x6.50x8 |
Lawn/turf rear | 23x8.50x15 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 68 inches
172 cm |
Width | 39 inches
99 cm |
Height (steering wheel) | 42 inches
106 cm |
Height (hood) | 36 inches
91 cm |
Shipping weight | 750 lbs
340 kg |
Ground clearance | 9 inches
22 cm |
Front axle | Cast-iron |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
44" Mower deck | |
|---|---|
Type | mid-mount Colt RM44 |
3-blade with manual lift | |
Cutting width | 44 inches
111 cm |
Photos

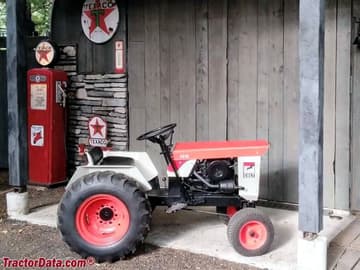

Colt 2510, right side.

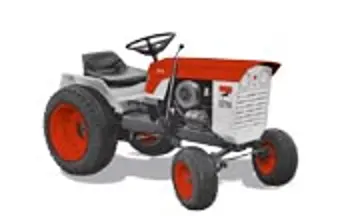

Colt 2510, front-right view.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Colt Lawn Tractors Colt 2510.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Colt Lawn Tractors Colt 2510 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Colt Lawn Tractors Colt 2510.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
