Colt 7

The Colt 7 is a tractor produced by Colt Lawn Tractors. It is equipped with a 265 cc 16.22 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: Colt-A-Matic. Operating weight: 590 lbs 267 kg.

Overview

	1963 - 1964 Garden tractor

Production
Manufacturer	Colt
Garden tractor
Built in Winneconne, Wisconsin, USA

Colt 7 Engine
7HP Kohler 265cc 1-cyl gasoline
Fuel tank	1.25 gal 4.7 L
Engine details ...

Colt 7 Transmission
hydraulic drive
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Hydraulic drum brakes
Open operator station.

Dimensions & Tires
Wheelbase	46.5 inches 118 cm
Weight	590 lbs 267 kg
Front tire	4.80x8
Rear tire	6x12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	42

References
Compact Tractor published in 1963, by Colt

Engine

Engine Detail — 265 cc / 16.22 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	265 cc 16.22 ci
Bore/Stroke	2.875x2.50 inches 73 x 64 mm
Power (gross)	7 hp 5.2 kW
Air cleaner	dry
Starter	electric
Starter volts	12
Oil capacity	1.25 qts 1.2 L

Transmission

Transmission — Colt-A-Matic

Transmission	Colt-A-Matic
Type	hydraulic drive
Gears	infinite forward and reverse (2-range)
Oil capacity	11 qts 10.4 L

Dimensions

Colt 7 Tires
Lawn/turf front	4.80x8
Lawn/turf rear	6x12
	8x12

Dimensions
Wheelbase	46.5 inches 118 cm
Length	65.75 inches 167 cm
Width	33 inches 83 cm
Height (steering wheel)	35.5 inches 90 cm
Height (hood)	30.8 inches 78 cm
Shipping weight	590 lbs 267 kg
Clearance (front axle)	10.4 inches 26 cm
Clearance (rear axle)	7 inches 17 cm
Front axle	Cast-iron
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

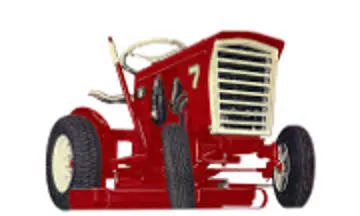

Colt 7 tractor photo
