County 1124 7F

The County 1124 7F is a tractor produced by County. It is equipped with a 380 ci 6.2 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW; Diesel (listed): 102 hp / 76.1 kW. Transmission: 8 forward and 2 reverse. Operating weight: 10,077 lbs 4570 kg.

Overview

	1967 - 1971

Production
Manufacturer	County
Built in Fleet, England

County 1124 Transmission
8-speed
Transmission details ...

County 1124 Power
Engine	102 hp 76.1 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Open operator station.

Tractor hitch
Rear lift	3,859 lbs 1750 kg

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Weight	10,077 lbs 4570 kg
Front tire	16.9-30
Rear tire	16.9-30
Full dimensions and tires ...

Engine

Engine options
Ford 5.9L 6-cyl diesel
Ford 6.2L 6-cyl diesel

Engine Detail — 362.8 ci / 5.9 L Diesel

Manufacturer	Ford 2704E
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	362.8 ci 5.9 L
Bore/Stroke	4.135x4.53 inches 105 x 115 mm
Power	100 hp 74.6 kW
Rated RPM	2250
Torque	276.6 lb-ft 375.1 Nm
Torque RPM	1500

Engine Detail — 380 ci / 6.2 L Diesel

Manufacturer	Ford 2704C
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	380 ci 6.2 L
Bore/Stroke	4.22x4.52 inches 107 x 115 mm
Power	102 hp 76.1 kW
Rated RPM	2250
Torque	281.7 lb-ft 382.0 Nm
Torque RPM	1500

Transmission

Transmission — 8 forward and 2 reverse

Gears

8 forward and 2 reverse

Dimensions

County 1124 Tires
Ag front	16.9-30
Ag rear	16.9-30

Dimensions
Weight	10,077 lbs 4570 kg

Photos

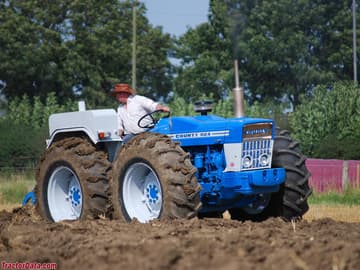

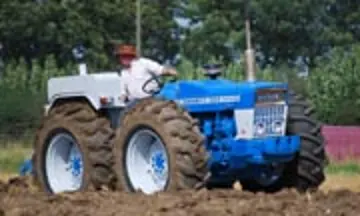

County 1124 7F
