County Super 6
The County Super 6 is a tractor produced by County. It is equipped with a 330 ci 5.4 L engine. The listed engine power is Diesel (gross): 95 hp / 70.8 kW. Transmission: 6 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 7785 lbs 3531 kg.
Engine Power
Diesel (gross): 95 hp / 70.8 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
20.2 gal
76.5 L
Transmission
6 forward and 2 reverse
Operating Weight
7785 lbs
3531 kg
Overview
 | 1962 - 1965
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Built in Fleet, England | |
County Super 6 Engine | |
|---|---|
Ford 5.4L 6-cyl diesel | |
Fuel tank | 20.2 gal
76.5 L |
Engine details ...  | |
County Super 6 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
County Super 6 Power | |
|---|---|
Engine (gross) | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Differential lock | mechanical front and rear |
Power steering | |
Mechanical disc brakes | |
Open operator station. | |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.1 gpm
26.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71 inches
180 cm |
Weight | 7785 lbs
3531 kg |
Front tire | 14-30 |
Rear tire | 14-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
References | |
|---|---|
 | |

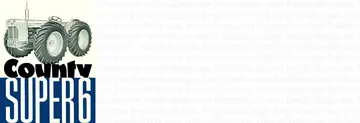

Super 6 published in 1962, by County |
Engine
Engine Detail — 330 ci / 5.4 L Diesel
Manufacturer | Ford 590E |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 330 ci
5.4 L |
Bore/Stroke | 3.9375x4.524 inches
100 x 115 mm |
Power (gross) | 95 hp
70.8 kW |
Compression | 16:1 |
Rated RPM | 2300 |
Torque | 253 lb-ft
343.1 Nm |
Torque RPM | 1500 |
Starter type | electric |
Transmission

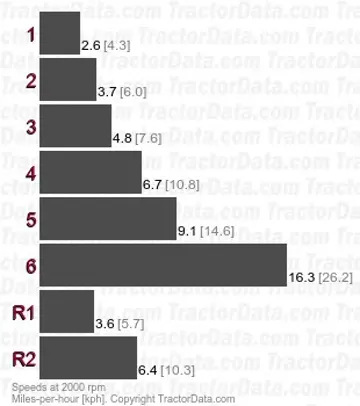

Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Clutch | 330mm dry disc |
 | |
Dimensions
County Super 6 Tires | |
|---|---|
Ag front | 14-30 |
Ag rear | 14-30 |
Ag front | 11-36 |
12-36 | |
11-38 | |
12-38 | |
Ag rear | 11-36 |
12-36 | |
11-38 | |
12-38 | |
Dimensions | |
|---|---|
Wheelbase | 71 inches
180 cm |
Length | 144 inches
365 cm |
Weight | 7785 lbs
3531 kg |
Ground clearance | 12 inches
30 cm |
Front tread | 64 inches
162 cm |
Rear tread | 60 to 72 inches
152 to 182 cm |
Photos

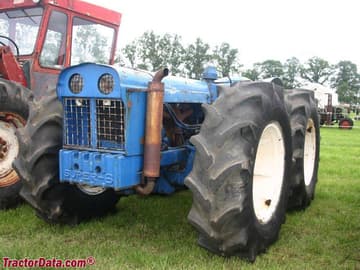

County Super-6 four-wheel drive tractor.
Recommended Implements & Sizing Guide
Engineering recommendations for County Super 6 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County Super 6.
Estimated Continuous Field Runtime: 4.1 hrs
Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (20.2 gal / 76.5 L).
Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County Super 6 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County Super 6.
Converted Equivalents:
Horsepower (HP)95 hp
Kilowatts (kW)70.8 kW
Metric Horsepower (PS / CV)96.3 PS
Direct Competitor Comparison
Compare County Super 6 against same-era industry alternatives in the same horsepower class.
Current Model
County
County Super 6
Engine Power:Diesel (gross): 95 hp / 70.8 kW
★ Baseline Reference
