County 954 Super 6

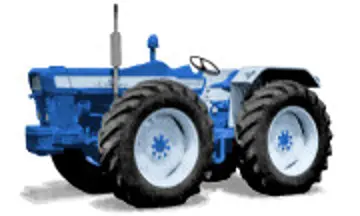

The County 954 Super 6 is a tractor produced by County. It is equipped with a 330 ci 5.4 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 8 forward and 2 reverse.

Engine Power

Diesel (listed): 95 hp / 70.8 kW

Fuel & Capacities

Diesel

Transmission

8 forward and 2 reverse

Overview

	1965 - 1967 Four-wheel Drive (4WD) tractor

Production
Manufacturer	County
Four-wheel Drive (4WD) tractor
Built in Fleet, England

County 954 Engine
Ford 5.4L 6-cyl diesel
Engine details ...

County 954 Transmission
8-speed gear
Transmission details ...

County 954 Power
Engine	95 hp 70.8 kW
PTO (claimed)	56 hp 41.8 kW

Mechanical
Four-wheel drive
Differential lock	mechanical front and rear
Wet disc brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2500 psi 172.4 bar

Tractor hitch
Rear Type	II
Rear lift	6000 lbs 2721 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@1902

Dimensions & Tires
Front tire	14-30
Rear tire	14-30
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	128

Engine

Engine Detail — 330 ci / 5.4 L Diesel

Manufacturer	Ford 2703E
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	330 ci 5.4 L
Bore/Stroke	3.9375x4.524 inches 100 x 115 mm
Power	95 hp 70.8 kW
Fuel system	direct injection
Rated RPM	2100
Starter volts	12

Transmission

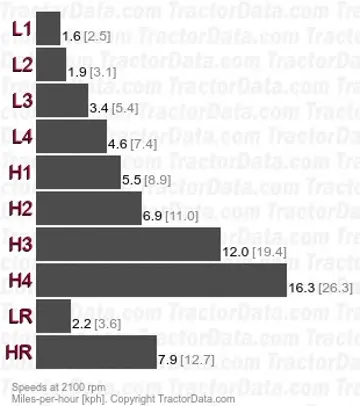

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	dry disc
Four gears, plus reverse, in two ranges.

Dimensions

County 954 Tires
Ag front	14-30
Ag rear	14-30

Dimensions
Length	159 inches 403 cm
Width	86.5 inches 219 cm
Height (exhaust)	88 inches 223 cm
Clearance (drawbar)	10 inches 25 cm
Front tread	68 inches 172 cm
Rear tread	68 inches 172 cm

Photos

County 954 four-wheel drive tractor.

County 954 operator station and controls.

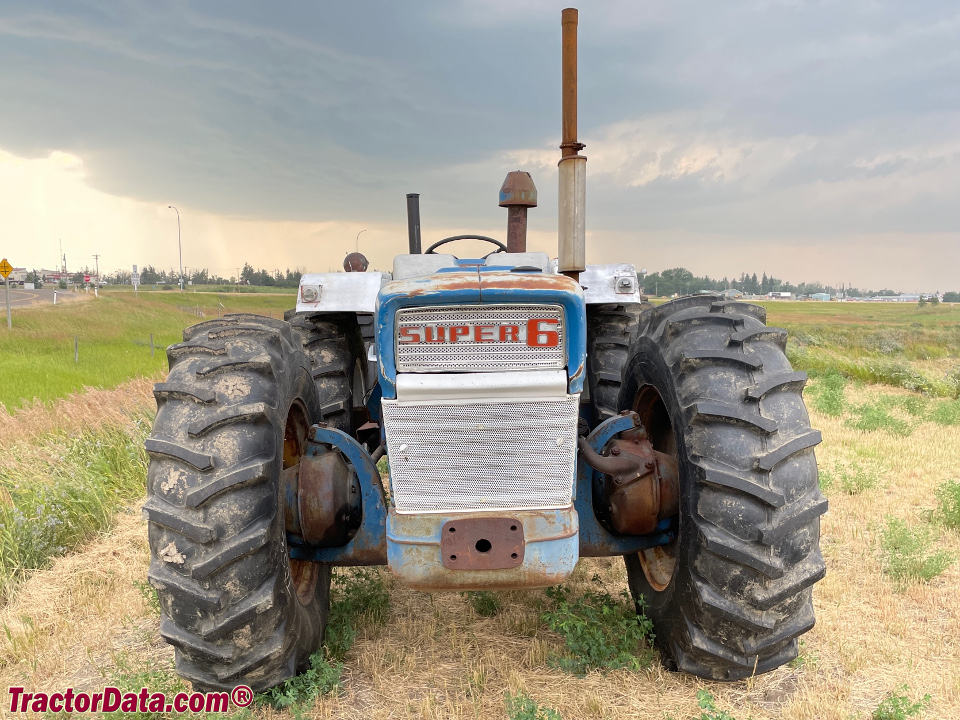

Detail of the County 954 front axle.

Recommended Implements & Sizing Guide

Engineering recommendations for County 954 Super 6 based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for County 954 Super 6.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
