County 944
The County 944 is a tractor produced by County. It is equipped with a 256 ci 4.2 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 8 forward and 2 reverse. Drive type: 4x4 4WD. Operating weight: 8839 lbs 4009 kg.
Engine Power
Diesel (listed): 95 hp / 70.8 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
19.9 gal
75.3 L
Transmission
8 forward and 2 reverse
Operating Weight
8839 lbs
4009 kg
Overview
 | 1971 - 1975
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | County |
Four-wheel Drive (4WD) tractor | |
Built in Fleet, England | |
County 944 Engine | |
|---|---|
Ford 4.2L 4-cyl diesel | |
Fuel tank | 19.9 gal
75.3 L |
Engine details ...  | |
County 944 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
County 944 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Differential lock | mechanical four-wheel |
Power steering | |
Wet disc brakes | |
Cab standard. | |
Hydraulics | |
|---|---|
Type | open center |
Total flow | 6 gpm
22.7 lpm |
Steering flow | 4 gpm
15.1 lpm |
Steering press. | 1100 psi
75.8 bar |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5292 lbs
2400 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@1900 |
Dimensions & Tires | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Weight | 8839 lbs
4009 kg |
Front tire | 13.6/12-38 |
Rear tire | 13.6/12-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 22 |
Battery volts | 12 |
References | |
|---|---|
 | |
Model 944 published by County |
Engine
Engine Detail — 256 ci / 4.2 L Diesel
Manufacturer | Ford 256 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 256 ci
4.2 L |
Bore/Stroke | 4.40x4.20 inches
112 x 107 mm |
Power | 95 hp
70.8 kW |
Compression | 16.5:1 |
Rated RPM | 2100 |
Torque | 239.0 lb-ft
324.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 10 qts
9.5 L |
Coolant capacity | 15.3 qts
14.5 L |

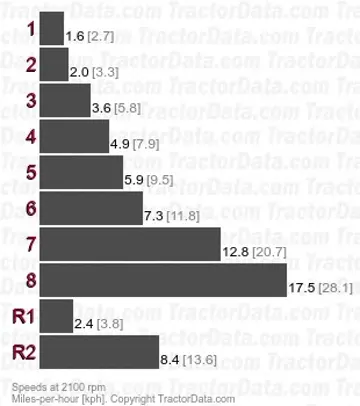

Transmission
Transmission — 8 forward and 2 reverse
Gears | 8 forward and 2 reverse |
Clutch | 330mm dry disc |
With 13.6/12-38 tires. | |
 | |
Dimensions
County 944 Tires | |
|---|---|
Ag front | 13.6/12-38 |
Ag rear | 13.6/12-38 |
Ag front | 23.1/18-26 |
16.9/14-3018.4/15-30 | |
14.9/14-34 | |
Ag rear | 23.1/18-26 |
16.9/14-3018.4/15-30 | |
14.9/14-34 | |
Dimensions | |
|---|---|
Wheelbase | 71.6 inches
181 cm |
Length | 146 inches
370 cm |
Height (cab) | 96 inches
243 cm |
Weight | 8839 lbs
4009 kg |
Ground clearance | 15.4 inches
39 cm |
Front tread | 60 to 84 inches
152 to 213 cm |
Rear tread | 60 to 84 inches
152 to 213 cm |

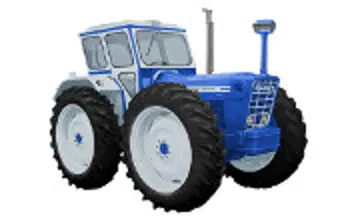

Photos
County 944 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for County 944 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 944.
Estimated Continuous Field Runtime: 4 hrs
Approximately 4 hours of continuous field operation at ~75% rated power on a full tank (19.9 gal / 75.3 L).
Estimated 75% Load Fuel Burn~4.9 gal/hr (18.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 944 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 944.
Converted Equivalents:
Horsepower (HP)95 hp
Kilowatts (kW)70.8 kW
Metric Horsepower (PS / CV)96.3 PS
Direct Competitor Comparison
Compare County 944 against same-era industry alternatives in the same horsepower class.
Current Model
County
County 944
Engine Power:Diesel (listed): 95 hp / 70.8 kW
★ Baseline Reference
