County 1884
The County 1884 is a tractor produced by County. It is equipped with a 401 ci 6.6 L engine. The listed engine power is Diesel (listed): 188 hp / 140.2 kW. Drive type: 4x4 4WD.
Engine Power
Diesel (listed): 188 hp / 140.2 kW
Drive & Traction
4x4 4WD
Overview
 | 1980 - 1984 |
|---|
Production | |
|---|---|
Manufacturer | County |
Built in Fleet, England | |
Original price | 29,850 (GBP 1980) |
The County 1884 was based on the Ford TW-30.. | |
County 1884 Engine | |
|---|---|
Ford 6.6L 6-cyl diesel | |
Engine details ...  |
County 1884 Power | |
|---|---|
Engine | 188 hp
140.2 kW |
Mechanical | |
|---|---|
Drive | 4x4 4WD |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 401 ci / 6.6 L Diesel
Manufacturer | Ford |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 401 ci
6.6 L |
Bore/Stroke | 4.40x4.40 inches
112 x 112 mm |
Power | 188 hp
140.2 kW |
Rated RPM | 2200 |
Transmission
Transmission |
|---|
Dimensions
County 1884 Tires |
|---|
Dimensions |
|---|
Photos

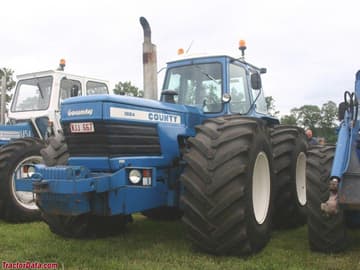

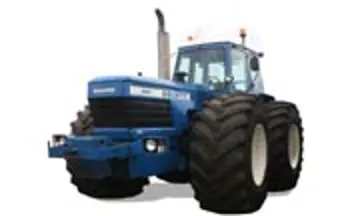

County 1884
Recommended Implements & Sizing Guide
Engineering recommendations for County 1884 based on its 188 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for County 1884.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
County 1884 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for County 1884.
Converted Equivalents:
Horsepower (HP)188 hp
Kilowatts (kW)140.2 kW
Metric Horsepower (PS / CV)190.6 PS
Direct Competitor Comparison
Compare County 1884 against same-era industry alternatives in the same horsepower class.
Current Model
County
County 1884
Engine Power:Diesel (listed): 188 hp / 140.2 kW
★ Baseline Reference
