Craftsman Professional 247.28888

The Craftsman Professional 247.28888 is a tractor produced by Craftsman Professional Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The rated power output is 26 hp 19.4 kW. Transmission: Hydro Gear 311-0510. Operating weight: 530 lbs 240 kg.

Overview

	2011 PYT 9000 SeriesLawn tractorMTD built
2011
PYT 9000 Series
Lawn tractor
MTD built

2011
PYT 9000 Series
Lawn tractor
MTD built

Production
Distributor	Craftsman Professional (a part of Sears)
Manufacturer	MTD
Lawn tractor
Original price was $2,490 in 2011

Variants
247.28880	California emissions

Craftsman Professional 247.28888 Engine
26HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Craftsman Professional 247.28888 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station. High-back seat with sliding adjustment.

Power Take-off (PTO)
Mid PTO	independent

Dimensions & Tires
Weight	530 lbs 240 kg
Front tire	15x6
Rear tire	20x8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	230
Battery volts	12

References
2011 Customer Buying Guide published by Sears

Engine

	2011 PYT 9000 SeriesLawn tractorMTD built
2011
PYT 9000 Series
Lawn tractor
MTD built

2011
PYT 9000 Series
Lawn tractor
MTD built

Engine Detail — 724 cc / 44.18 ci Gasoline

Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Briggs & Stratton Professional 44P777
Displacement	724 cc 44.18 ci
Power (gross)	26 hp 19.4 kW
Air cleaner	cartridge
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm

Craftsman Professional 247.28888 Engine
Image courtesy of Mike Benson

Transmission

	2011 PYT 9000 SeriesLawn tractorMTD built
2011
PYT 9000 Series
Lawn tractor
MTD built

2011
PYT 9000 Series
Lawn tractor
MTD built

Transmission — Hydro Gear 311-0510

Transmission	Hydro Gear 311-0510
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

	2011 PYT 9000 SeriesLawn tractorMTD built
2011
PYT 9000 Series
Lawn tractor
MTD built

2011
PYT 9000 Series
Lawn tractor
MTD built

Craftsman Professional 247.28888 Tires
Lawn/turf front	15x6
Lawn/turf rear	20x8

Dimensions
Weight	530 lbs 240 kg

Attachments

	2011 PYT 9000 SeriesLawn tractorMTD built
2011
PYT 9000 Series
Lawn tractor
MTD built

2011
PYT 9000 Series
Lawn tractor
MTD built

46" Mower deck
	2-blade
Cutting width	46 inches 116 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	12

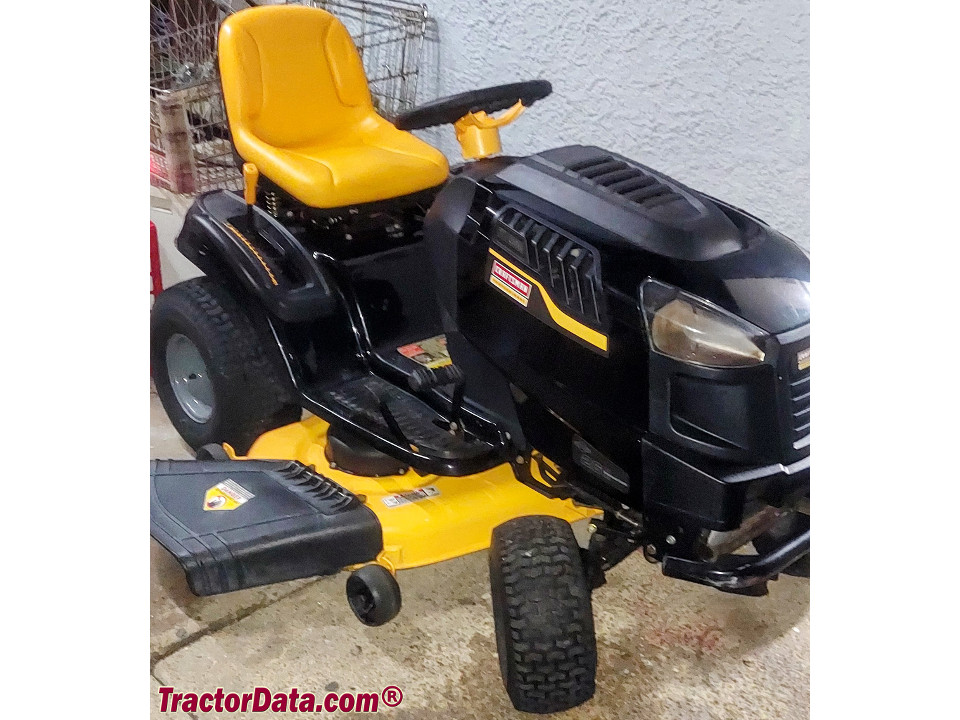

Photos

Craftsman Professional 247.28888
