Cub Cadet 1100

The Cub Cadet 1100 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: Peerless gear. Operating weight: 569 lbs 258 kg.

Overview

	1978 - 1979 Quietline SeriesGarden tractor Quietline Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA
The Cub Cadet 1100 was an economy model of the "Quietline" era. It was the only model to use a Briggs engine and used a Peerless transaxle instead of the heavier IH Cub Cadet rear end.

Cub Cadet 1100 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Cub Cadet 1100 Transmission
4-speed
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch

Power Take-off (PTO)
Front PTO	independent
Clutch	electric
Front PTO Type	3400

Dimensions & Tires
Wheelbase	44 inches 111 cm
Weight	569 lbs 258 kg
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

References
New International 1100 published in 1978, by Cub Cadet
1979 Buyer's Guide published by International Harvester

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 253417
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Air cleaner	dry
Rated RPM	3400
Torque	16.8 lb-ft 22.8 Nm
Torque RPM	1575
Starter volts	12

Transmission

Transmission — Peerless gear

Transmission	Peerless gear
Gears	4 forward and 1 reverse

Dimensions

Cub Cadet 1100 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	69 inches 175 cm
Width	37.5 inches 95 cm
Height (steering wheel)	42.5 inches 107 cm
Operating weight	569 lbs 258 kg
Ground clearance	7.5 inches 19 cm
Front tread	29 inches 73 cm
Rear tread	29 inches 73 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

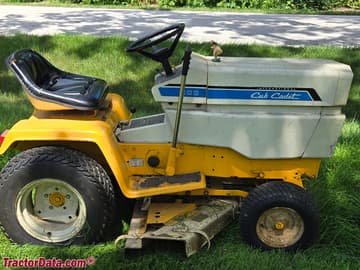

Cub Cadet 1100 garden tractor.

Cub Cadet 1100 garden tractor, front view.
