Cub Cadet 111
The Cub Cadet 111 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: Peerless. Operating weight: 430 lbs 195 kg.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
Peerless
Operating Weight
430 lbs
195 kg
Overview
 | 1978 - 1979
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of International Harvester) |
Lawn tractor | |
Cub Cadet 111 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Cub Cadet 111 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 430 lbs
195 kg |
Front tire | 13x5.00-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1979 Buyer's Guide published by International Harvester |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.4375x2.3625 inches
87 x 60 mm |
Power (gross) | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |

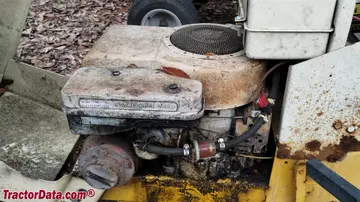

Cub Cadet 111 Engine | |
|---|---|
 | |
Image courtesy of Terry Stephen |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Cub Cadet 111 Tires | |
|---|---|
Lawn/turf front | 13x5.00-6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 61 inches
154 cm |
Shipping weight | 430 lbs
195 kg |
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos
Cub Cadet 111 lawn tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 111.
Estimated Continuous Field Runtime: 1.7 hrs
Approximately 1.7 hours of continuous field operation at ~75% rated power on a full tank (1 gal / 3.8 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 111 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 111.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
