Cub Cadet 1110

The Cub Cadet 1110 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: infinite forward and reverse. Operating weight: 506 lbs (36-inch deck) 229 kg.

Overview

	1985 - 1986 Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Variants
1105	gear 36-inch deck
1106	gear 44-inch deck
1110	hydrostatic 36-inch deck
1111	hydrostatic 44-inch deck

Cub Cadet 1110 Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet 1110 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	506 to 522 pounds
Front tire	15x6-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Hydrostatic Home Tractors published in 1985, by Cub Cadet
Home Tractors published in 1985, by Cub Cadet
Cub Cadet Lawn Tractors published in 1986
Service Manual Lawn Tractors (772-3870) published in 1990

Engine

Engine Detail — 399 cc / 24.36 ci Gasoline

Manufacturer	Briggs & Stratton 253707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	399 cc 24.36 ci
Bore/Stroke	3.4375x2.625 inches 87 x 67 mm
Power (gross)	11 hp 8.2 kW
Idle RPM	1800-3500
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	0.75 qts 0.7 L
Oil type	IH Hy-Tran
The transaxle called for 1.4 quarts of SAE EP 90 gear oil to be changed every two years.

	IH Hy-Tran

Dimensions

Cub Cadet 1110 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x10-8

Dimensions
Wheelbase	45 inches 114 cm
Length	68.5 inches 173 cm
Weight	506 lbs (36-inch deck) 229 kg
	522 lbs (44-inch deck) 236 kg

Attachments

Attachment overview
36" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

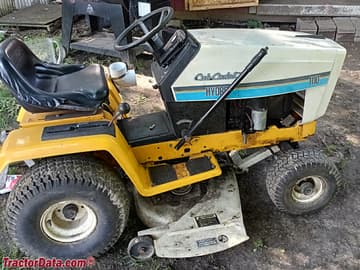

Photos

Cub Cadet 1110
