Cub Cadet 122

The Cub Cadet 122 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: creeper. Operating weight: 625 lbs 283 kg.

Overview

	1965 - 1967 1X2/1X3 SeriesGarden tractor 1X2/1X3 Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Cub Cadet 122 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	transmission
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	43 inches 109 cm
Weight	625 lbs 283 kg
Front tire	4.80x4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Battery volts	12

References
International Cub Cadet Lawn and Garden Tractor published in 1964
Operator's Manual Rotary Mowers (1019804R3) published in 1965

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301AS
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.385x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Compression	6:1
Rated RPM	3600
Starter volts	12

Transmission

Transmission options
3-speed gear
6-speed

Transmission — 3 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	3 forward and 1 reverse
Clutch	114.3mm dry disc
Transmission
Transmission	creeper
Gears	6 forward and 2 reverse

122 Transmission Controls
1	Clutch/brake
2	Throttle
3	Gear shift
4	Creeper shift

Dimensions

Cub Cadet 122 Tires
Lawn/turf front	4.80x4.00-8
Lawn/turf rear	23x8.50-12
Lawn/turf front	16x6.50-8

Dimensions
Wheelbase	43 inches 109 cm
Length	63 inches 160 cm
Width	33.3 inches 84 cm
Height (steering wheel)	40 inches 101 cm
Weight	625 lbs 283 kg
Ground clearance	6 inches 15 cm
Front axle	Cast-iron
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

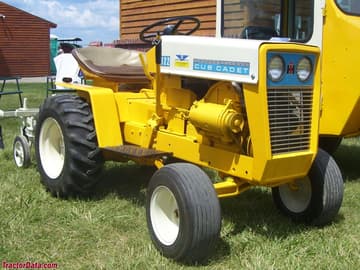

Cub Cadet 122, front-right view

Cub Cadet 122, rear view with hitch

Left view of the Cub Cadet 122

Cub Cadet 122 operator station and controls.
