Cub Cadet 1225

The Cub Cadet 1225 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 465 cc 28.42 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: Peerless 800. Operating weight: 445 lbs*Weight with 38-inch mower deck. 201 kg.

Overview

	1992 - 1993 Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Cub Cadet 1225 Engine
12HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet 1225 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	445 lbs 201 kg
Front tire	15x6-6
Rear tire	18x8.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	235
Battery volts	12

References
1992 Product Line published by Cub Cadet
Tracteurs De Pelouse published in 1992, by Cub Cadet
Lawn Tractors published in 1992, by Cub Cadet
Lawn Tractors published in 1993, by Cub Cadet

Engine

Engine Detail — 465 cc / 28.42 ci Gasoline

Manufacturer	Briggs & Stratton 283707
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	465 cc 28.42 ci
Bore/Stroke	3.43x3.06 inches 87 x 78 mm
Power (gross)	12 hp 8.9 kW
Starter	electric
Starter volts	12

Cub Cadet 1225 Engine

Transmission

Transmission — Peerless 800

Transmission	Peerless 800
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Cub Cadet 1225 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	45 inches 114 cm
Length	68.5 inches 173 cm
Height (steering wheel)	40 inches 101 cm
Weight	445 lbs*Weight with 38-inch mower deck. 201 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Cub Cadet 190441
	2-blade with manual lift
Cutting width	38 inches 96 cm
Overall width	49 inches 124 cm
Cut height	1 to 4.5 inch 2 to 11 cm

Photos

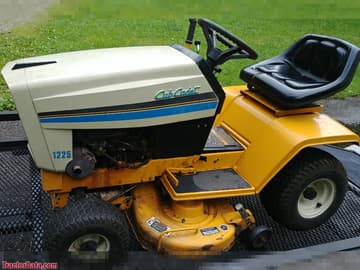

Cub Cadet 1225
