Cub Cadet 123

The Cub Cadet 123 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 650 lbs 294 kg.

Overview

	1966 - 1967 1X2/1X3 SeriesGarden tractor 1X2/1X3 Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Cub Cadet 123 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Cub Cadet 123 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Drum brakes
Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	43 inches 109 cm
Weight	650 lbs 294 kg
Front tire	4.80x4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Battery volts	12

References
International Cub Cadet Lawn and Garden Tractor published in 1964

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301AS
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.385x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Compression	6:1
Rated RPM	3600
Starter volts	12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Manufacturer	Sunstrand
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
Oil type	IH HY-Tran

	IH HY-Tran

Dimensions

Cub Cadet 123 Tires
Lawn/turf front	4.80x4.00-8
Lawn/turf rear	23x8.50-12
Lawn/turf front	16x6.50-8

Dimensions
Wheelbase	43 inches 109 cm
Length	63 inches 160 cm
Width	33.3 inches 84 cm
Height (steering wheel)	40 inches 101 cm
Weight	650 lbs 294 kg
Ground clearance	6 inches 15 cm
Front axle	Cast-iron
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

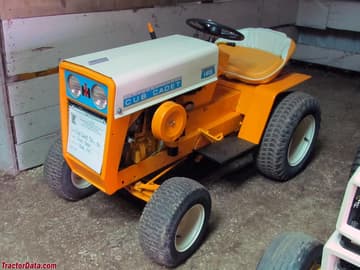

Restored Cub Cadet 123

Original-condition Cub Cadet 123 with mower deck.

Original-condition Cub Cadet 123 with mower deck.

Original-condition Cub Cadet 123 with mower deck.
