Cub Cadet 125

The Cub Cadet 125 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 479 cc 29.25 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 650 lbs 294 kg.

Overview

	1967 - 1969 1X4/1X5 SeriesGarden tractor 1X4/1X5 Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Cub Cadet 125 Engine
12HP Kohler 479cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Cub Cadet 125 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Drum brakes
Open operator station with vinyl-padded fiberglass seat.

Hydraulics
Type	optional
Pressure	400 psi 27.6 bar
Pump flow	2.5 gpm 9.5 lpm

Tractor hitch
Type	Cub Cadet three-point

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical
Front PTO Type	3600

Dimensions & Tires
Wheelbase	43 inches 109 cm
Weight	650 lbs 294 kg
Front tire	4.80x4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	generator
Charging amps	15
Battery volts	12

References
more POWER to you! published in 1967, by Cub Cadet
Operator's Manual International Cub Cadet 72, 104, 105, 124 and 125 Tractors (1 082 659 R2) published in 1968
Cub Cadet Lawn and Garden Tractors published in 1967, by International Harvester
World Wide Farm Equipment Buyer's Guide published in 1968, by International Harvester*
Spring 1969 Buyer's Guide published by International Harvester
*Publication contains known errors.

Engine

Engine Detail — 479 cc / 29.25 ci Gasoline

Manufacturer	Kohler K301AS
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	479 cc 29.25 ci
Bore/Stroke	3.385x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Rated RPM	3600
Idle RPM	1000-3800
Starter volts	12
Sparkplug	Champion H-10
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm
Intake valve clearance	0.010 inches (cold) 0.254 mm
Exhaust valve clearance	0.020 inches (cold) 0.508 mm
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Manufacturer	Sundstrand
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L

Dimensions

Cub Cadet 125 Tires
Lawn/turf front	4.80x4.00-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	43 inches 109 cm
Length	64 inches 162 cm
Width	36 inches 91 cm
Height (steering wheel)	39.75 inches 100 cm
Weight	650 lbs 294 kg
Ground clearance	6 inches 15 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

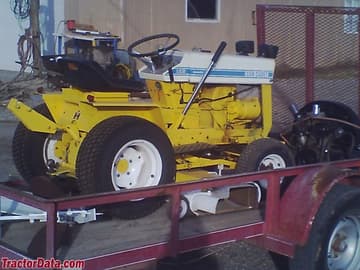

Cub Cadet 125
