Cub Cadet 128

The Cub Cadet 128 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: 6 forward and 2 reverse.

Overview

	1971 - 1974 1X8/1X9 SeriesGarden tractor 1X8/1X9 Series Garden tractor

Production
Manufacturer	Cub Cadet (a part of International Harvester)
Garden tractor
Built in Louisville, Kentucky, USA

Variants
129	hydrostatic
128	gear

Cub Cadet 128 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Mechanical
Two-wheel drive
Steering	manual
Mechanical disc brakes
Open operator station.

Tractor hitch
Type	sleeve hitch (optional)

Power Take-off (PTO)
Rear PTO	transmission (optional)
Rear PTO Type	515
Front PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	4.80/4.00-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Delco-Remy generator
Charging amps	15
Battery volts	12

References
for more mower go CUB CADET published in 1971, by Cub Cadet
Operator's Manual published in 1974, by Cub Cadet

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301A
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power	12 hp 8.9 kW
Air cleaner	dry cartridge
Rated RPM	3600
Idle RPM	1000-3800
Starter volts	12
Sparkplug	Champion H-10
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm
Intake valve clearance	0.010 inches*Cold 0.254 mm
Exhaust valve clearance	0.020 inches*Cold 0.508 mm
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission

Transmission options
3-speed gear
6-speed creeper

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	4.5-inch dry disc
Oil capacity	3.5 qts 3.3 L
Oil type	IH Hy-Tran

	IH Hy-Tran

128 Transmission Controls
1	Clutch/brake
2	Throttle
3	Gear shift

Transmission — 6 forward and 2 reverse creeper

Type	creeper
Gears	6 forward and 2 reverse
Clutch	4.5-inch dry disc
Oil capacity	3.75 qts 3.5 L
The optional creeper provided an additional lower range. Moving the creeper shift lever forward engages direct drive, while the creeper is to the rear. The creeper ratio is a 4:1 reduction.

Dimensions

Cub Cadet 128 Tires
Lawn/turf front	4.80/4.00-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	69 inches 175 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Ground clearance	6 inches 15 cm
Front tread	27 inches 68 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

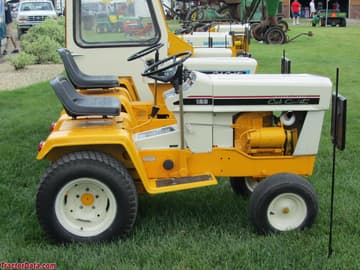

Cub Cadet 128, left side

Cub Cadet 128, left side

Cub Cadet 128, left side
