Cub Cadet 1282

The Cub Cadet 1282 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The rated power output is 12 hp 8.9 kW. Transmission: Sundstrand. Operating weight: 657 lbs 298 kg.

Overview

	1982 - 1985 CCC 82 SeriesGarden tractor
1982 - 1985
CCC 82 Series
Garden tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Garden tractor
Built in Brownsville, Tennessee, USA

Variants
680	Cadet yellow
1282	IH red

Cub Cadet 1282 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Cub Cadet 1282 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Wet disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	44 inches 111 cm
Weight	657 lbs 298 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	200
Battery volts	12
Battery AH	32

References
Operator's Manual 1282, 682, and 782 (1096805 R1) published in 1982
One Tough Tractor published in 1985, by Cub Cadet
International Cub Cadet Tractors published in 1985, by International Harvester
Buyer's Guide 1982 published by International Harvester

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	476 cc 29.07 ci
Bore/Stroke	3.38x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Fuel system	Kohler side-draft carburetor with mechanical diaphragm fuel pump
Rated RPM	2200
Torque	22 lb-ft 29.8 Nm
Torque RPM	2100
Starter	electric
Starter volts	12

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Hydrostatic transmission controlled with right-hand lever on dashboard. Cast-iron transmission case used from start of production until mid 1983, tractor serial number 719,999. Aluminum-case transmission used afterward.

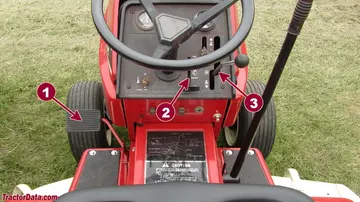

1282 Transmission Controls
1	Brake
2	Throttle
3	Forward/reverse

Dimensions

Cub Cadet 1282 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	44 inches 111 cm
Length	72 inches 182 cm
Width	37.75 inches 95 cm
Height (steering wheel)	43 inches 109 cm
Operating weight	657 lbs 298 kg
Ground clearance	6 inches 15 cm
Front tread	29 inches 73 cm
Rear tread	27 inches 68 cm

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
The 1282 was compatible with the model 2B 38-inch tiller.

Photos

Cub Cadet 1282

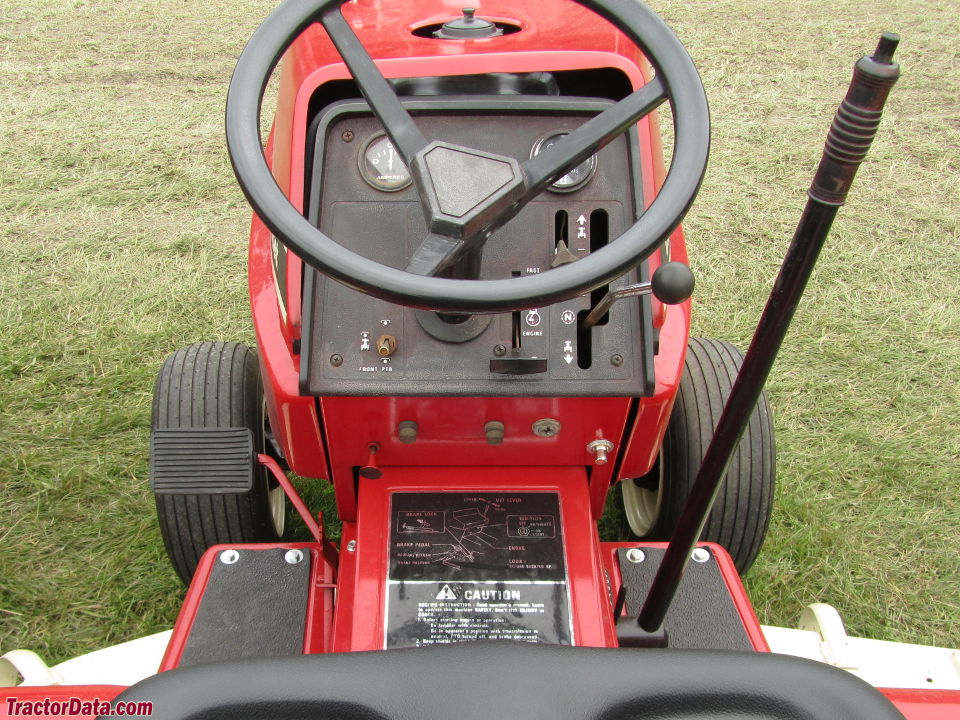

Cub Cadet 1282 operator station and controls.
