Cub Cadet 1330

The Cub Cadet 1330 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 398 cc 24.29 ci engine. The listed engine power is Gasoline (gross): 12.5 hp / 9.3 kW. Transmission: infinite forward and reverse. Operating weight: 490 lbs*Weight with 38-inch mower deck. 222 kg.

Engine Power
Gasoline (gross): 12.5 hp / 9.3 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
infinite forward and reverse
Operating Weight
490 lbs*Weight with 38-inch mower deck. 222 kg

Overview

Cub Cadet 1330 tractor photo
1992 - 1993 Lawn tractor
Production
Manufacturer
Cub Cadet (a part of MTD)
Lawn tractor
Variants
1325
gear
1330
hydrostatic
Cub Cadet 1330 Engine
12.5HP Kohler 398cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Cub Cadet 1330 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Dry disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
45 inches 114 cm
Weight
490 lbs 222 kg
Front tire
15x6-6
Rear tire
20x10-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
15
Battery CCA
235
Battery volts
12
References
1330 references literature
1992 Product Line published by Cub Cadet
Tracteurs De Pelouse published in 1992, by Cub Cadet
Lawn Tractors published in 1992, by Cub Cadet
Lawn Tractors published in 1993, by Cub Cadet

Engine

Engine Detail — 398 cc / 24.29 ci Gasoline

Manufacturer
Kohler
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
398 cc 24.29 ci
Bore/Stroke
3.43x2.64 inches 87 x 67 mm
Power (gross)
12.5 hp 9.3 kW
Idle RPM
1800-3300
Starter
electric
Starter volts
12
Sparkplug
RC12YC
Sparkplug gap
0.040 inches 1.016 mm
Oil capacity
2 qts 1.9 L
Oil change
100 h
Cub Cadet 1330 Engine
Cub Cadet 1330 engine image

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
1330 belt-driven hydrostatic speeds

Dimensions

Cub Cadet 1330 Tires
Lawn/turf front
15x6-6
Lawn/turf rear
20x10-8
Dimensions
Wheelbase
45 inches 114 cm
Length
68.5 inches 173 cm
Height (steering wheel)
40 inches 101 cm
Weight
490 lbs*Weight with 38-inch mower deck. 222 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade
38" Mower deck
Type
mid-mount Cub Cadet 190441
2-blade with manual lift
Cutting width
38 inches 96 cm
Overall width
49 inches 124 cm
Cut height
1.5 to 4 inch 3 to 10 cm

Photos

Cub Cadet 1330, left side.

Cub Cadet 1330, left side.

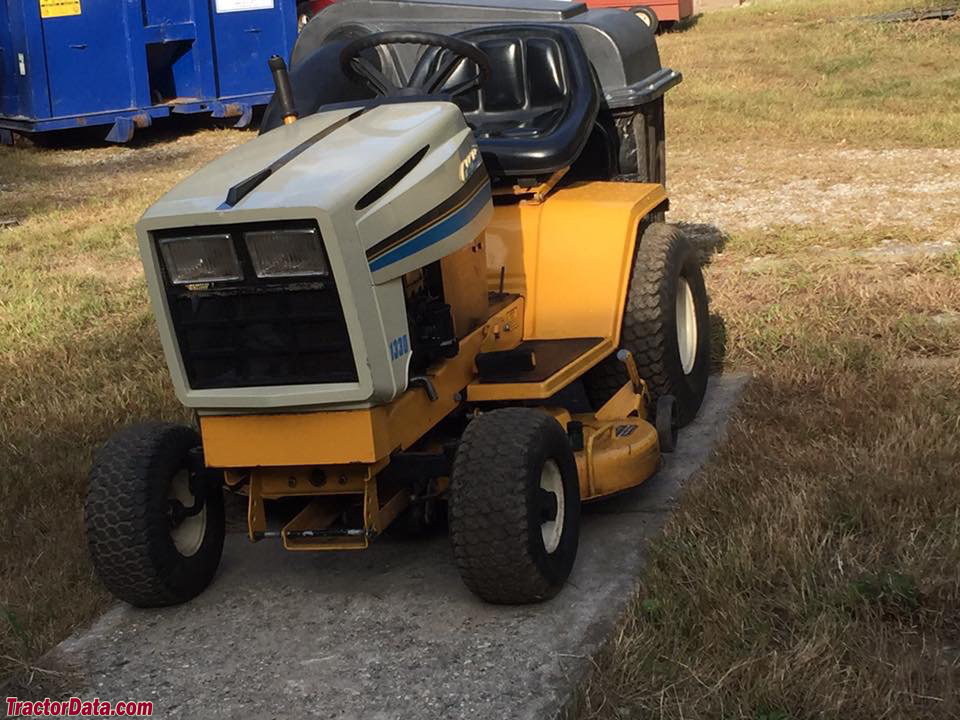

Cub Cadet 1330, front view.

Cub Cadet 1330, front view.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 1330.

Estimated Continuous Field Runtime: 4.6 hrs

Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Cub Cadet Lawn Tractors Cub Cadet 1330 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1330.

Converted Equivalents:

Horsepower (HP)12.5 hp
Kilowatts (kW)9.3 kW
Metric Horsepower (PS / CV)12.7 PS
