Cub Cadet 1610

The Cub Cadet 1610 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 655 cc 40.0 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 553 lbs 250 kg.

Overview

	1985 - 1986 Lawn tractor

Production
Manufacturer	Cub Cadet (a part of MTD)
Lawn tractor

Variants
1605	gear
1610	hydrostatic

Cub Cadet 1610 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Cub Cadet 1610 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	45 inches 114 cm
Weight	553 lbs 250 kg
Front tire	15x6-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual Hydrostatic Home Tractors published in 1985, by Cub Cadet
Home Tractors published in 1985, by Cub Cadet
Cub Cadet Lawn Tractors published in 1986
Service Manual Lawn Tractors (772-3870) published in 1990

Engine

Engine Detail — 655 cc / 40.0 ci Gasoline

Manufacturer	Briggs & Stratton 402707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	655 cc 40.0 ci
Bore/Stroke	3.4375x2.0625 inches 87 x 52 mm
Power (gross)	16 hp 11.9 kW
Idle RPM	1800-3400
Starter	electric
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	0.75 qts 0.7 L
Oil type	IH Hy-Tran
The transaxle called for 1.4 quarts of SAE EP 90 gear oil to be changed every two years.

	IH Hy-Tran

Dimensions

Cub Cadet 1610 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x10-8

Dimensions
Wheelbase	45 inches 114 cm
Length	68.5 inches 173 cm
Weight	553 lbs 250 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Cub Cadet 190-392-100
	3-blade with manual lift
Cutting width	44 inches 111 cm
Cut height	1.5 to 4.5 inch 3 to 11 cm

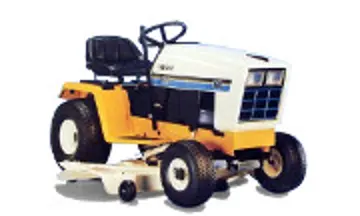

Photos

Cub Cadet 1610
