Cub Cadet 1615
The Cub Cadet 1615 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: 5 forward and 1 reverse. Operating weight: 548 lbs*Weight with 44-inch mower deck. 248 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
5 forward and 1 reverse
Operating Weight
548 lbs*Weight with 44-inch mower deck.
248 kg
Overview
 | 1987
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Variants | |
|---|---|
1615 | gear |
1620 | hydrostatic |
Cub Cadet 1615 Engine | |
|---|---|
16HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Cub Cadet 1615 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45 inches
114 cm |
Weight | 548 lbs
248 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 220 |
Battery volts | 12 |
References | |
|---|---|
 | |
Owner's Manual 1615 1620 (772-3864) published in 1987 | |
Lawn Tractors published in 1987, by Cub Cadet | |
Service Manual Lawn Tractors (772-3870) published in 1990 |
Engine
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft opposed-twin |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.12x2.75 inches
79 x 70 mm |
Power (gross) | 16 hp
11.9 kW |
Compression | 5.8:1 |
Torque | 26 lb-ft
35.3 Nm |
Torque RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |

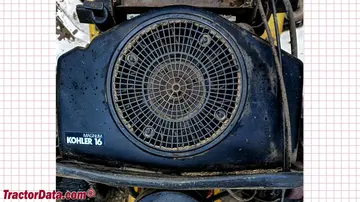

Cub Cadet 1615 Engine | |
|---|---|
 | |
Image courtesy of Christopher Kinney |
Transmission
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
Cub Cadet 1615 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 45 inches
114 cm |
Length | 68.5 inches
173 cm |
Weight | 548 lbs*Weight with 44-inch mower deck.
248 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
Snowblower | |
Blade |
Photos

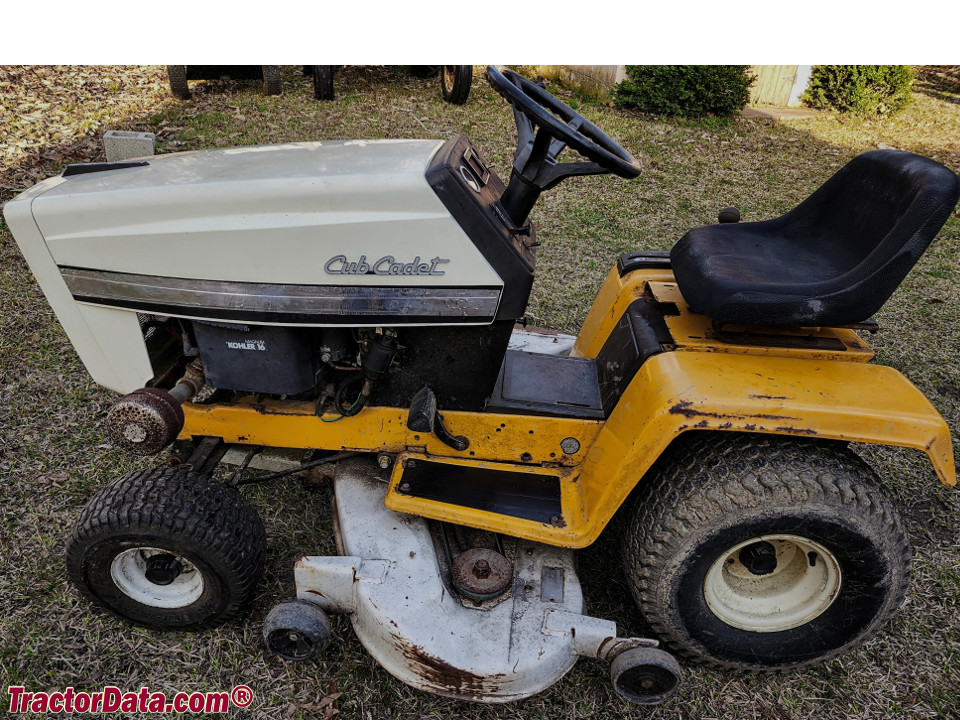

Cub Cadet 1615

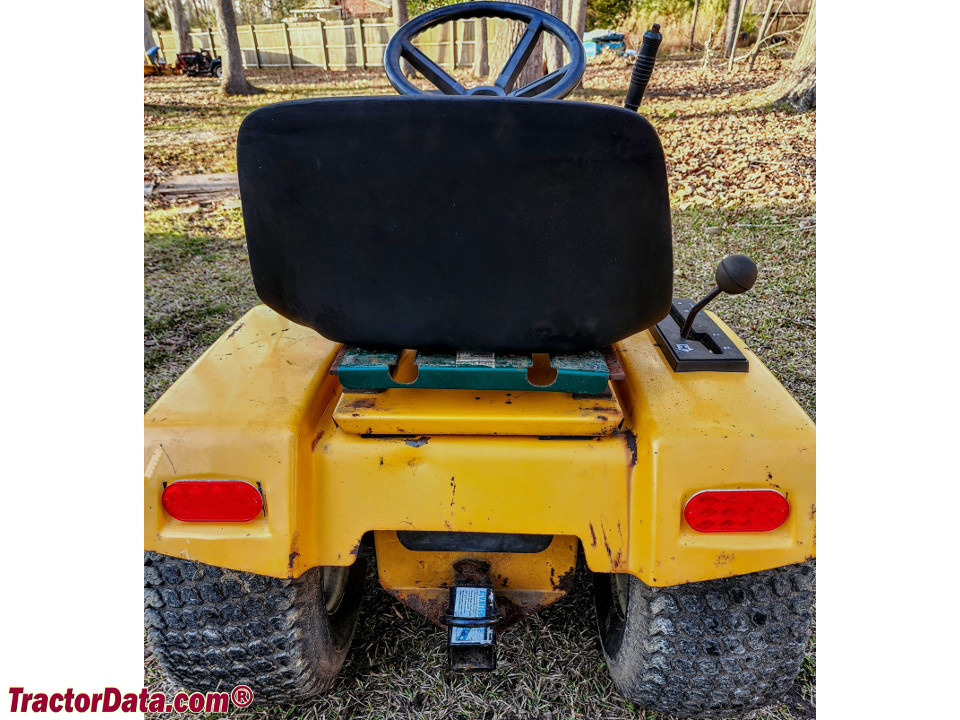

Cub Cadet 1615

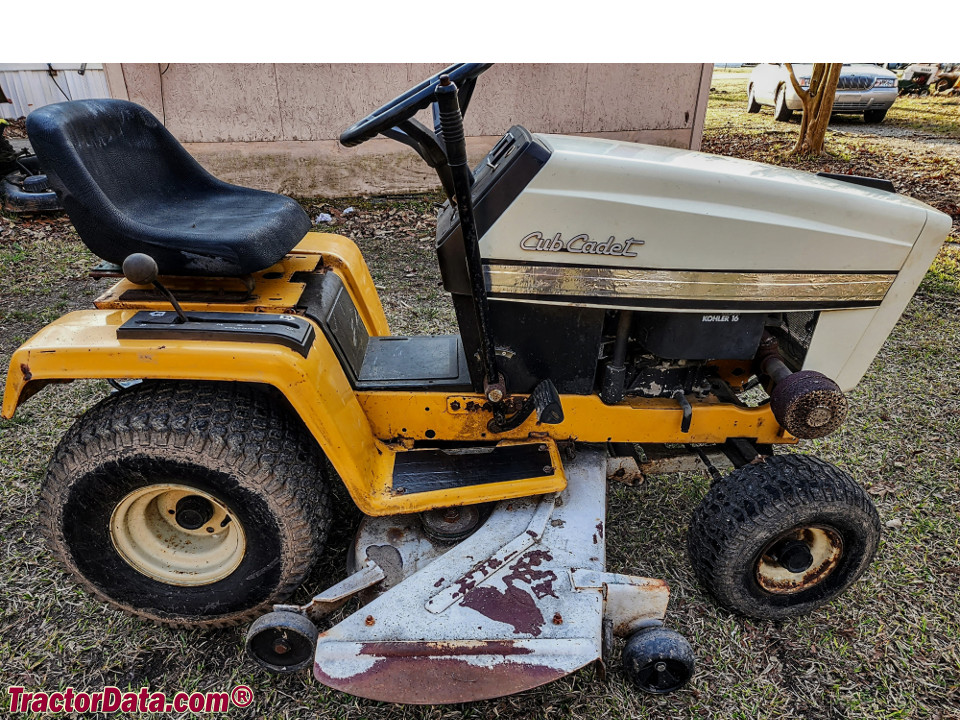

Cub Cadet 1615

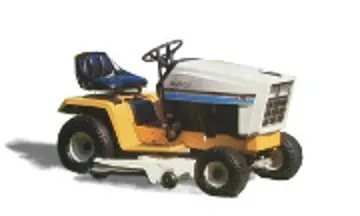

Cub Cadet 1615
Cub Cadet Lawn Tractors Cub Cadet 1615 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 1615.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
