Cub Cadet HDS 2165
The Cub Cadet HDS 2165 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 672 lbs*Weight with 48-inch mower deck. 304 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
672 lbs*Weight with 48-inch mower deck.
304 kg
Overview
 | 1994 - 1999
2000 SeriesGarden tractor
2000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Variants | |
|---|---|
2160 | AutoGear |
2165 | hydrostatic |
Cub Cadet 2165 Engine | |
|---|---|
16HP Briggs & Stratton 480cc 2-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Cub Cadet 2165 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Internal expanding brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 672 lbs
304 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 275 |
Battery volts | 12 |

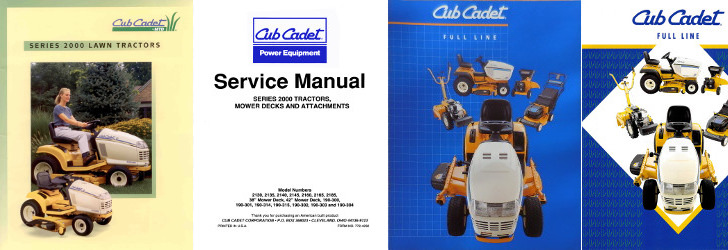

References | |
|---|---|
 | |
Series 2000 Lawn Tractors published in 1998, by Cub Cadet | |
Cub Cadet Garden Tractors (772-4232) | |
Full Line published in 1995, by Cub Cadet | |
Full Line published in 1996, by Cub Cadet |
Engine
Engine Detail — 480 cc / 29.3 ci Gasoline
Manufacturer | Briggs & Stratton Vanguard |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 480 cc
29.3 ci |
Bore/Stroke | 2.68x2.60 inches
68 x 66 mm |
Power (gross) | 16 hp
11.9 kW |
Rated RPM | 3600 |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Intake valve clearance | 0.005 inches (cold)
0.127 mm |
Exhaust valve clearance | 0.005 inches (cold)
0.127 mm |
Oil capacity | 1.8 qts
1.7 L |
Oil change | 50 h |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 7.5 qts
7.1 L |
 | |
Dimensions
Cub Cadet 2165 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x9.5-12 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 72 inches
182 cm |
Width | 39 inches
99 cm |
Height (steering wheel) | 43 inches
109 cm |
Weight | 672 lbs*Weight with 48-inch mower deck.
304 kg |
Ground clearance | 6 inches
15 cm |
Front tread | 31.5 inches
80 cm |
Rear tread | 30.25 inches
76 cm |
Attachments
Attachment overview | |
|---|---|
46" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
A 28-inch rear tiller, model 190304, with electric lift was available. A 10 bushel triple-bag rear grass catcher (model 190306) was optional. |
Photos
Cub Cadet HDS 2165 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet HDS 2165 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet HDS 2165.
Estimated Continuous Field Runtime: 3.6 hrs
Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet HDS 2165 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet HDS 2165.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Cub Cadet HDS 2165 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet HDS 2165
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
