Cub Cadet 2166
The Cub Cadet 2166 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 426 cc 26 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 735 lbs 333 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
infinite forward and reverse
Operating Weight
735 lbs
333 kg
Overview
 | 2000 - 2003
2000 SeriesLawn tractor
2000 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet 2166 Engine | |
|---|---|
16HP Kohler 426cc 1-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
Engine details ...  | |
Cub Cadet 2166 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Internal expanding brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 735 lbs
333 kg |
Front tire | 15x6-6 |
Rear tire | 20x9-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 2000 Tractors published in 2002, by Cub Cadet | |
Outdoor Power Equipment 2003 published by Cub Cadet |
Engine
Engine Detail — 426 cc / 26 ci Gasoline
Manufacturer | Kohler Command |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 426 cc
26 ci |
Bore/Stroke | 3.55x2.67 inches
90 x 68 mm |
Power (gross) | 16 hp
11.9 kW |
Rated RPM | 3600 |
Idle RPM | 1400-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 2 qts
1.9 L |
Oil change | 100 h |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 6 qts
5.7 L |
 | |
Dimensions
Cub Cadet 2166 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x9-8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 72 inches
182 cm |
Height (steering wheel) | 42 inches
106 cm |
Shipping weight | 735 lbs
333 kg |
Ground clearance | 6 inches
15 cm |
Front tread | 30 inches
76 cm |
Rear tread | 27.5 inches
69 cm |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
Cutting width | 42 inches
106 cm |
Overall width | 51 inches
129 cm |
Photos

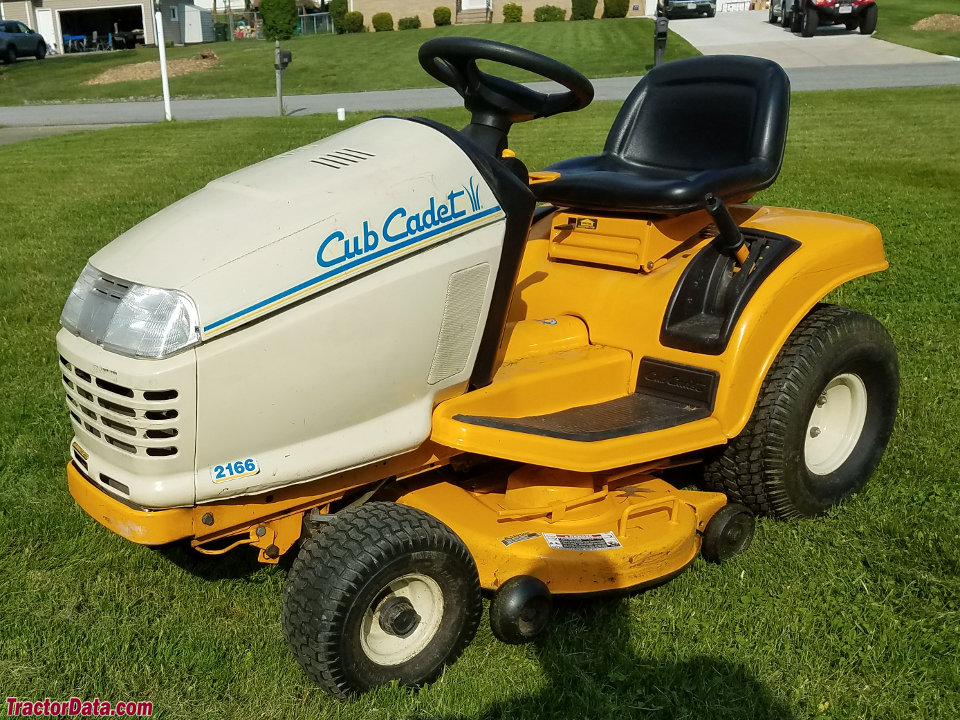

Cub Cadet 2166

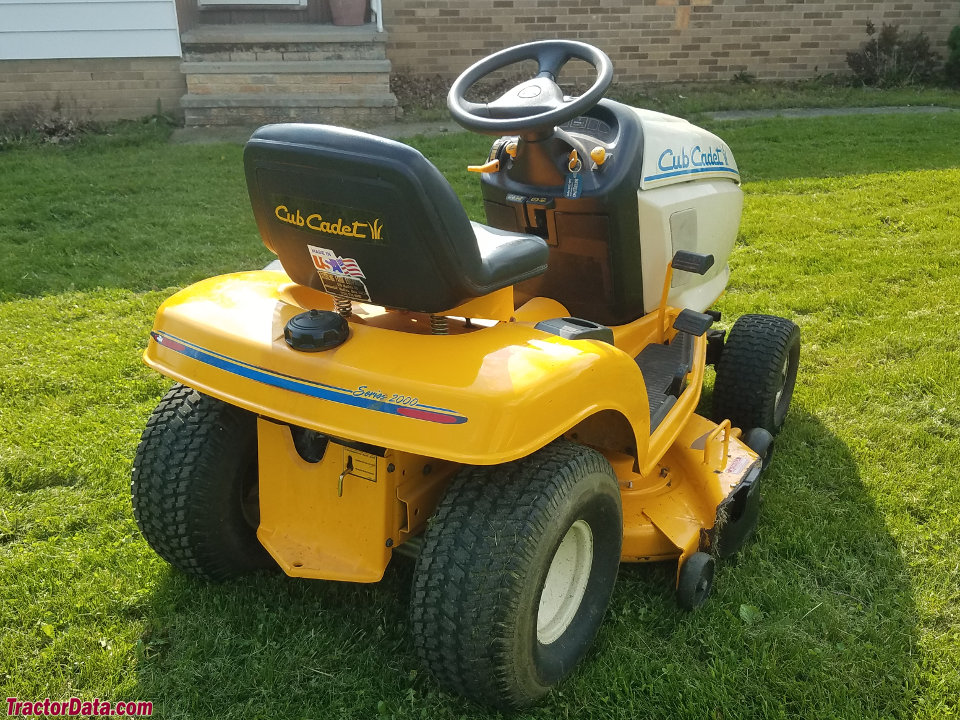

Cub Cadet 2166
Cub Cadet 2166
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet 2166 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 2166.
Estimated Continuous Field Runtime: 2.5 hrs
Approximately 2.5 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 2166 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 2166.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Cub Cadet 2166 against same-era industry alternatives in the same horsepower class.
Current Model
Cub Cadet Lawn Tractors
Cub Cadet 2166
Engine Power:Gasoline (gross): 16 hp / 11.9 kW
★ Baseline Reference
