Cub Cadet 482
The Cub Cadet 482 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 399 cc 24.36 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 4 forward and 1 reverse.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
4 forward and 1 reverse
Overview
 | 1979 - 1981
IH 82 SeriesGarden tractor
IH 82 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of International Harvester) |
Garden tractor | |
Built in Brownsville, Tennessee, USA | |
Cub Cadet 482 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Cub Cadet 482 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Type | sleeve hitch |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
International Cadet Tractors published in 1979, by International Harvester | |
Tractors published in 1984, by Cub Cadet | |
International Cub Cadet Tractors published in 1985, by International Harvester | |
Buyer's Guide 1981 published by International Harvester | |
Buyer's Guide 1982 published by International Harvester |
Engine
Engine Detail — 399 cc / 24.36 ci Gasoline
Manufacturer | Briggs & Stratton 253417 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 399 cc
24.36 ci |
Bore/Stroke | 3.44x2.62 inches
87 x 67 mm |
Power (gross) | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 1 reverse belt-driven gear
Manufacturer | Peerless |
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Dimensions
Cub Cadet 482 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 72 inches
182 cm |
Width | 37.25 inches
94 cm |
Height (steering wheel) | 43 inches
109 cm |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
44" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
The 482 was compatible with the model 2B 38-inch tiller. |
Photos

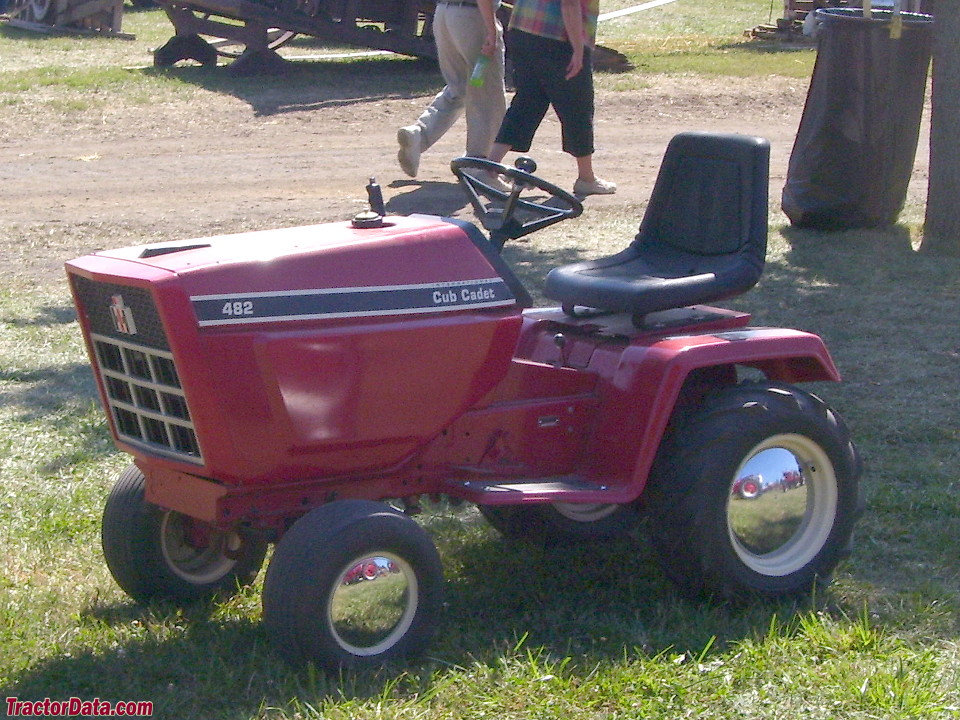

Cub Cadet 482
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet 482.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet 482 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet 482.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
