Cub Cadet 580
The Cub Cadet 580 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Peerless.
Engine Power
16 hp
11.9 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Peerless
Cub Cadet Lawn Tractors Cub Cadet 580 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1984
Garden tractor |
|---|---|
1982 - 1984 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Variants | |
|---|---|
582 Special | IH red |
580 | Cub Cadet yellow |
Cub Cadet 580 Engine | |
|---|---|
16HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Cub Cadet 580 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Disc brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
Tractors published in 1984, by Cub Cadet |
Engine
Engine Detail — 655 cc / 40 ci Gasoline
Manufacturer | Briggs & Stratton 401417 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.4375x2.156 inches
87 x 55 mm |
Power (gross) | 16 hp
11.9 kW |
Fuel system | downdraft carburetor with integral fuel pump |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RJ-8 |
Sparkplug gap | 0.030 inches
0.762 mm |
Point gap | 0.020 inches
0.508 mm |
Intake valve clearance | 0.006 inches (cold)
0.152 mm |
Exhaust valve clearance | 0.008 inches (cold)
0.203 mm |
Oil capacity | 1.75 qts
1.7 L |
Oil change | 30 h |
Transmission
Transmission — Peerless
Transmission | Peerless |
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | belt and pulley |
Oil capacity | 2 qts
1.9 L |
 | |
Dimensions
Cub Cadet 580 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 72 inches
182 cm |
Width | 3.25 inches
8 cm |
Height (steering wheel) | 43 inches
109 cm |
Ground clearance | 6 inches
15 cm |
Front tread | 29 inches
73 cm |
Rear tread | 26.8 inches
68 cm |
Attachments
44" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
manual lift | |
Cutting width | 44 inches
111 cm |
Photos

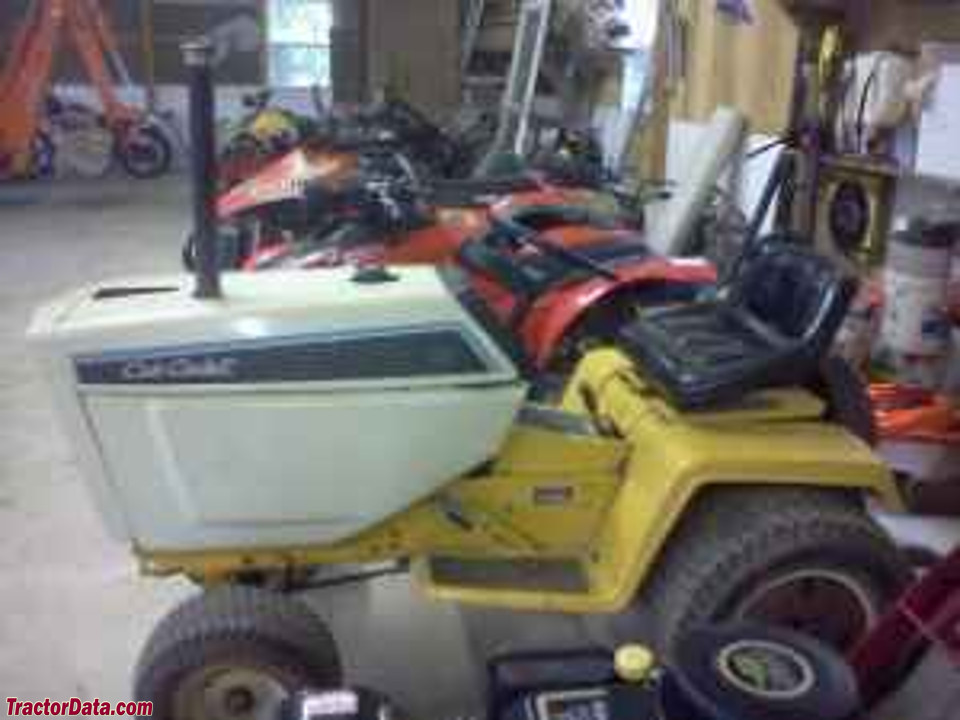

Cub Cadet 580
Cub Cadet 580
