Cub Cadet GTX 2154
The Cub Cadet GTX 2154 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 673 cc 41.1 ci engine. The rated power output is 22.5 hp 16.8 kW. Transmission: Hydro-Gear BDU-10.
Engine Power
22.5 hp
16.8 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
Hydro-Gear BDU-10
Cub Cadet Lawn Tractors Cub Cadet GTX 2154 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2014
2000 SeriesGarden tractor |
|---|---|
2014 | |
2000 Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Original price was $6,400 in 2014 | |
Cub Cadet GTX 2154 Engine | |
|---|---|
22.5HP Kohler 673cc 2-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet GTX 2154 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | electric power |
Disc brakes | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Front tire | 16x6.5 |
Rear tire | 23x10.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 25 |
Battery CCA | 275 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 2000 Garden Tractors published in 2014, by Cub Cadet |
Engine
Engine Detail — 673 cc / 41.1 ci Gasoline
Manufacturer | Kohler CH680 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 673 cc
41.1 ci |
Bore/Stroke | 3.2x2.6 inches
81 x 66 mm |
Power (gross) | 22.5 hp
16.8 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.0 qts
1.9 L |
Transmission
Transmission — Hydro-Gear BDU-10
Transmission | Hydro-Gear BDU-10 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.7 qts
5.4 L |
 | |
Dimensions
Cub Cadet GTX 2154 Tires | |
|---|---|
Lawn/turf front | 16x6.5 |
Lawn/turf rear | 23x10.5 |
Dimensions | |
|---|---|
Wheelbase | 50.6 inches
128 cm |
Length | 76 inches
193 cm |
Front axle | Cast-iron: 0.75 inch diameter
19 mm |
Rear axle | 1.0 inch diameter
25 mm |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
54" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with electric lift | |
Cutting width | 54 inches
137 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

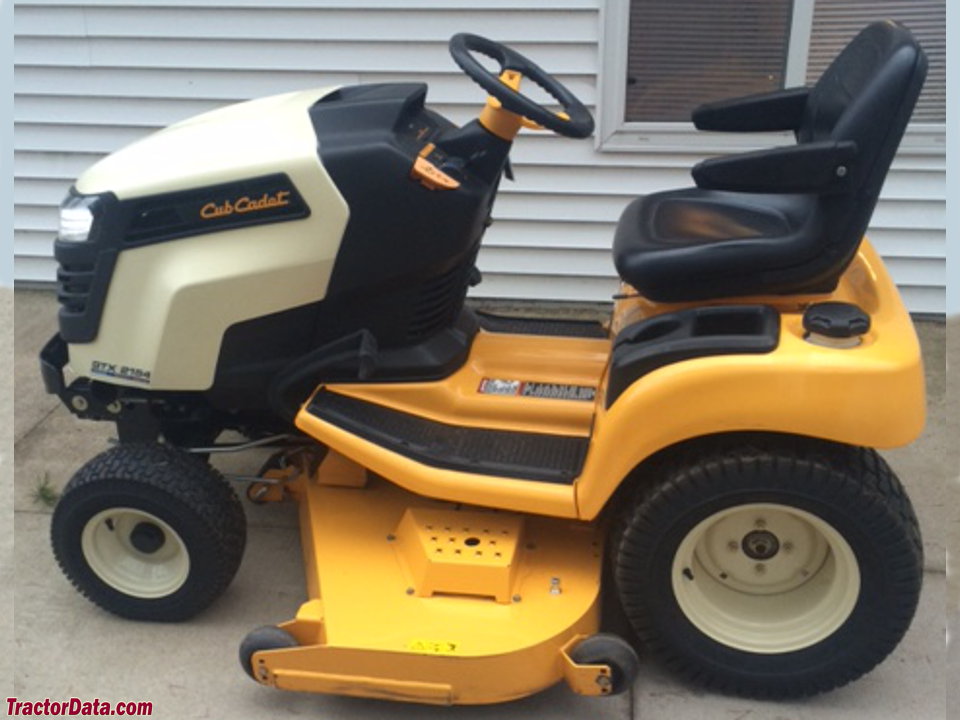

Cub Cadet GTX 2154
