Cub Cadet LT1045
The Cub Cadet LT1045 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 596 cc 36.4 ci engine. The rated power output is 19 hp 14.2 kW. Transmission: Hydro-Gear 0510. Operating weight: 510 lbs*Weight with mower deck. 231 kg.
Engine Power
19 hp
14.2 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Hydro-Gear 0510
Operating Weight
510 lbs*Weight with mower deck.
231 kg
Cub Cadet Lawn Tractors Cub Cadet LT1045 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2005 - 2008
LT 1000 SeriesLawn tractor |
|---|---|
2005 - 2008 | |
LT 1000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet LT1045 Engine | |
|---|---|
19HP Kohler 596cc 1-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Cub Cadet LT1045 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Dry disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 510 lbs
231 kg |
Front tire | 15x6-6 |
Rear tire | 20x10-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 15 |
Battery CCA | 190 |
Battery volts | 12 |
References | |
|---|---|
 | |
Residential Outdoor Power Equipment 2005 published by Cub Cadet* | |
Better Residential Outdoor Power Equipment published in 2006, by Cub Cadet | |
Better Residential Outdoor Power Equipment published in 2007, by Cub Cadet | |
Premium Residential Outdoor Power Equipment published in 2008, by Cub Cadet | |
*Publication contains known errors. |
Engine
Engine Detail — 596 cc / 36.4 ci Gasoline
Manufacturer | Kohler SV600 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 596 cc
36.4 ci |
Bore/Stroke | 3.70x3.38 inches
94 x 86 mm |
Power (gross) | 19 hp
14.2 kW |
Compression | 8.5:1 |
Rated RPM | 3600 |
Idle RPM | 1200-3600 |
Torque | 36 lb-ft
48.8 Nm |
Torque RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion QC12YC |
Sparkplug gap | 0.030 inches
0.762 mm |
Oil capacity | 1.6 qts
1.5 L |
Oil change | 100 h |
Transmission
Transmission — Hydro-Gear 0510
Transmission | Hydro-Gear 0510 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Cub Cadet LT1045 Tires | |
|---|---|
Lawn/turf front | 15x6-6 |
Lawn/turf rear | 20x10-8 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 68 inches
172 cm |
Width | 49 inches
124 cm |
Height | 43 inches
109 cm |
Weight | 510 lbs*Weight with mower deck.
231 kg |
Ground clearance | 4.5 inches
11 cm |
Attachments
Attachment overview | |
|---|---|
46" mid-mount mower deck | |
Snowblower | |
Blade |
46" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual lift | |
Cutting width | 46 inches
116 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

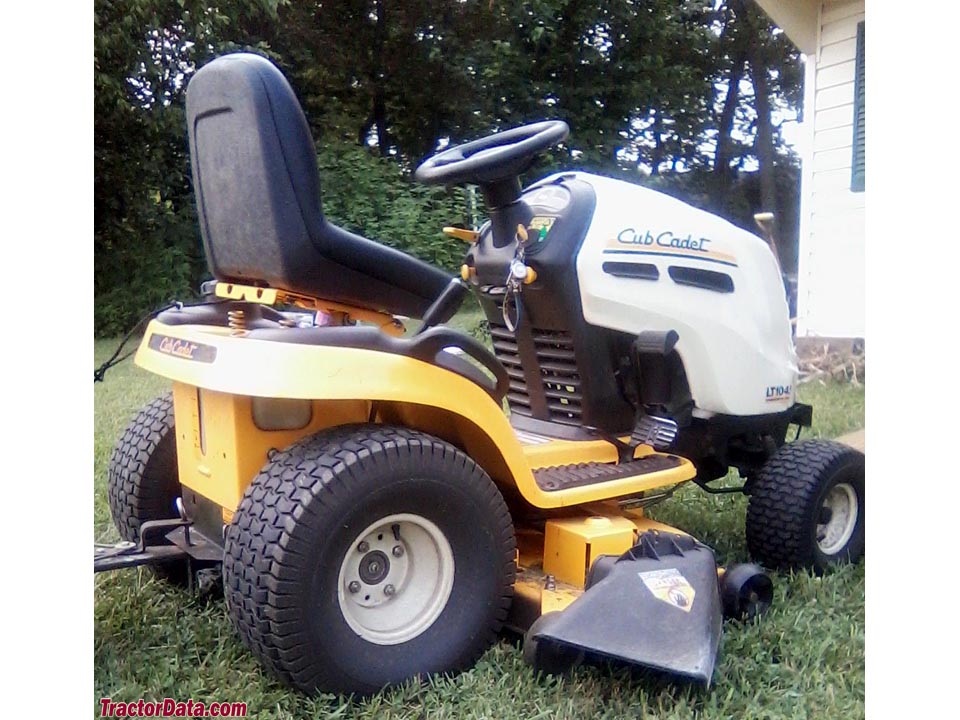

Cub Cadet LT1045
Cub Cadet LT1045
