Cub Cadet LTX 1040
The Cub Cadet LTX 1040 is a tractor produced by Cub Cadet Lawn Tractors. The rated power output is 19 hp 14.2 kW. Transmission: infinite forward and reverse. Operating weight: 468 lbs (with deck) 212 kg.
Engine Power
19 hp
14.2 kW
Fuel & Capacities
3.3 gal
12.5 L
Transmission
infinite forward and reverse
Operating Weight
468 lbs (with deck)
212 kg
Cub Cadet Lawn Tractors Cub Cadet LTX 1040 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2009 - 2014
LTX 1000 SeriesLawn tractor |
|---|---|
2009 - 2014 | |
LTX 1000 Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Lawn tractor | |
Cub Cadet LTX 1040 Engine | |
|---|---|
19HP Kohler 1-cyl gasoline | |
Fuel tank | 3.3 gal
12.5 L |
Engine details ...  | |
Cub Cadet LTX 1040 Transmission | |
|---|---|
automatic CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual sector and pinion |
Open operator station with mid-back seat. Six inches travel with 12 positions. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | manual lever |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Weight | 468 lbs
212 kg |
Front tire | 15x6 |
Rear tire | 20x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 190 |
Battery volts | 12 |
References | |
|---|---|
 | |
Series 1000 published in 2009, by Cub Cadet | |
Series 1000 published in 2011, by Cub Cadet | |
Series 1000 published in 2012, by Cub Cadet | |
Series 1000 published in 2013, by Cub Cadet | |
Series 1000 published in 2014, by Cub Cadet |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler Courage |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 19 hp
14.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.6 qts
1.5 L |
Transmission
Transmission — infinite forward and reverse automatic CVT
Type | automatic CVT |
Gears | infinite forward and reverse |
Oil capacity | 0.6 qts
0.6 L |
 | |
Dimensions
Cub Cadet LTX 1040 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 20x8 |
Dimensions | |
|---|---|
Wheelbase | 47.5 inches
120 cm |
Length | 69 inches
175 cm |
Weight | 468 lbs (with deck)
212 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
2-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Cut positions | 12 |
Photos

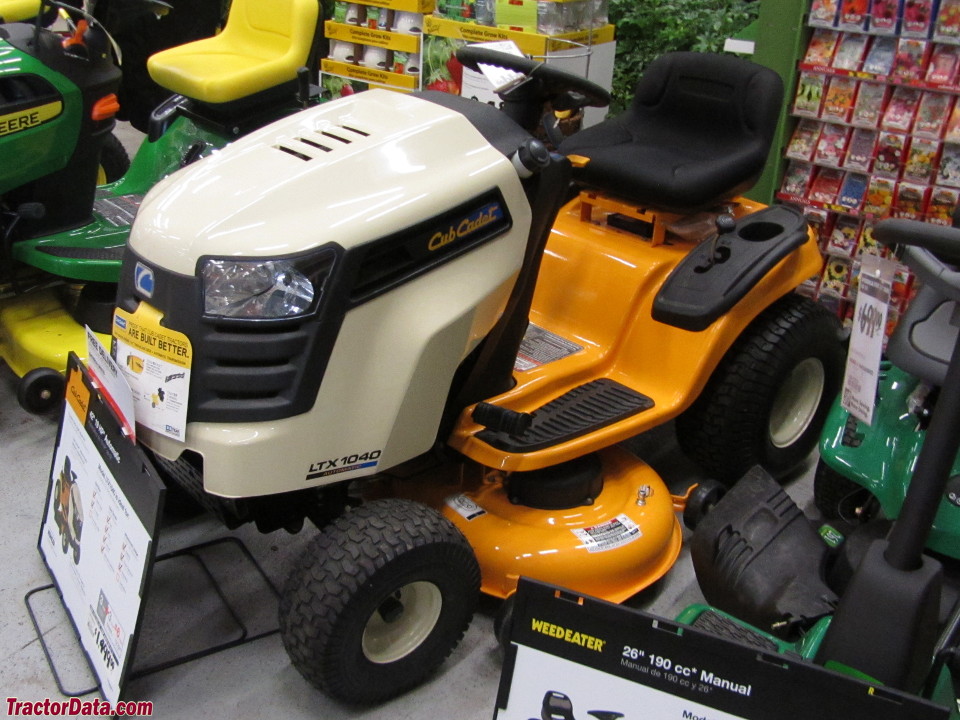

Cub Cadet LTX 1040

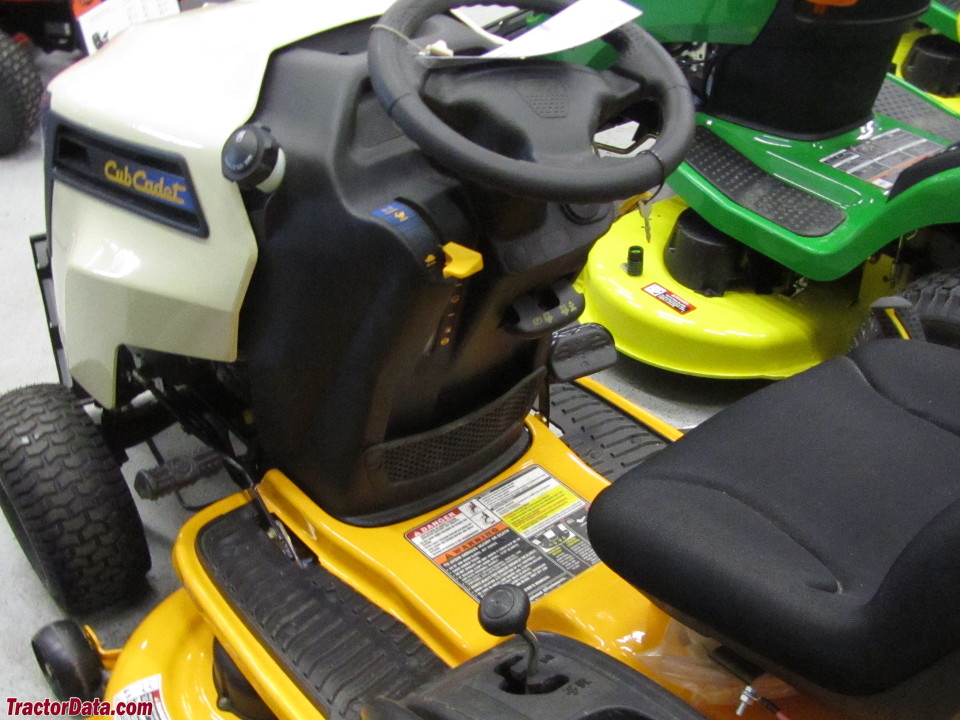

Cub Cadet LTX 1040 operator station and controls.
