Cub Cadet Tank L48
The Cub Cadet Tank L48 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 694 cc 42.4 ci engine. The listed engine power is Gasoline (gross): 22.5 hp / 16.8 kW. Transmission: Parker Torqpact. Operating weight: 1110 lbs 503 kg.
Engine Power
Gasoline (gross): 22.5 hp / 16.8 kW
Fuel & Capacities
7.5 gal
28.4 L
Transmission
Parker Torqpact
Operating Weight
1110 lbs
503 kg
Overview
 | 2014 -
Tank L SeriesZero-turn mower |
|---|---|
2014 - | |
Tank L Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Tank L Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Cub Cadet Tank L48 Engine | |
|---|---|
22.5HP Kohler 694cc 2-cyl gasoline | |
Fuel tank | 7.5 gal
28.4 L |
Engine details ...  | |
Cub Cadet Tank L48 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Drum brakes | |
Two-post foldable ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 54 inches
137 cm |
Weight | 1110 lbs
503 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x9.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |
Engine
| 2014 -
Tank L SeriesZero-turn mower |
|---|---|
2014 - | |
Tank L Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Tank L Series | |
Zero-turn mower |
Engine Detail — 694 cc / 42.4 ci Gasoline
Manufacturer | Kohler CV682 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 694 cc
42.4 ci |
Bore/Stroke | 3.15x2.71 inches
80 x 69 mm |
Power (gross) | 22.5 hp
16.8 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2014 -
Tank L SeriesZero-turn mower |
|---|---|
2014 - | |
Tank L Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Tank L Series | |
Zero-turn mower |
Transmission — Parker Torqpact
Transmission | Parker Torqpact |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2014 -
Tank L SeriesZero-turn mower |
|---|---|
2014 - | |
Tank L Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Tank L Series | |
Zero-turn mower |
Cub Cadet Tank L48 Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x9.5-12 |
Dimensions | |
|---|---|
Wheelbase | 54 inches
137 cm |
Length | 86.5 inches
219 cm |
Width | 49.5 inches
125 cm |
Height | 73.5 inches
186 cm |
Weight | 1110 lbs
503 kg |
Front tread | 43 inches
109 cm |
Rear tread | 54 inches
137 cm |
Attachments
| 2014 -
Tank L SeriesZero-turn mower |
|---|---|
2014 - | |
Tank L Series | |
Zero-turn mower | |
2014 - | |
|---|---|
Tank L Series | |
Zero-turn mower |
48" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with manual spring-assisted lift | |
Cutting width | 48 inches
121 cm |
Cut height | 1 to 5 inch
2 to 12 cm |
Photos

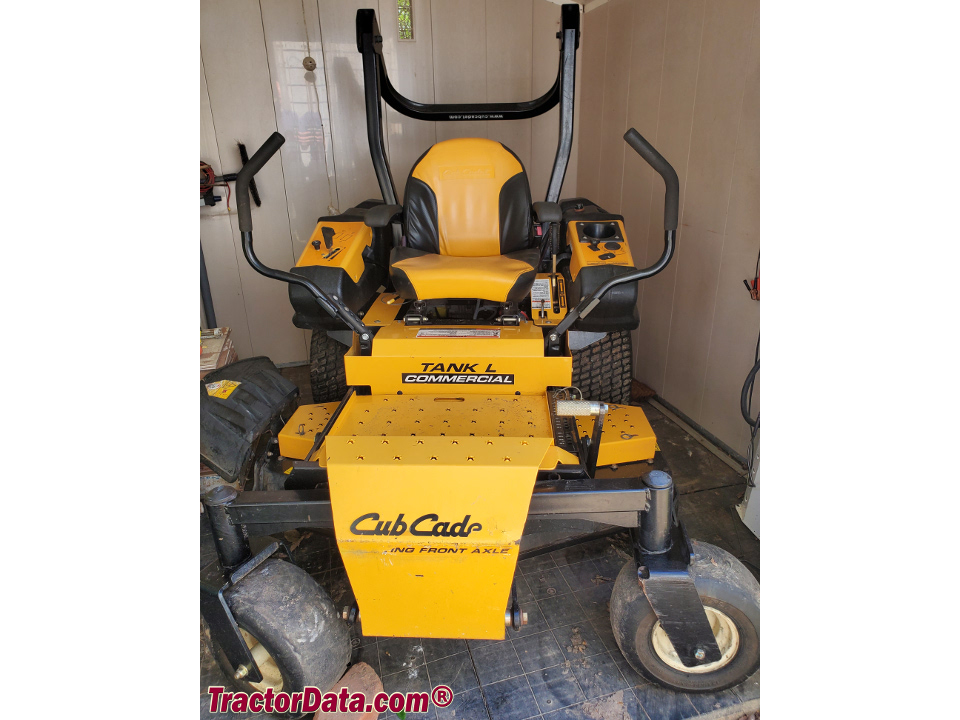

Cub Cadet Tank L48 zero-turn mower.
Recommended Implements & Sizing Guide
Engineering recommendations for Cub Cadet Lawn Tractors Cub Cadet Tank L48 based on its 22.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Cub Cadet Lawn Tractors Cub Cadet Tank L48.
Estimated Continuous Field Runtime: 6.4 hrs
Approximately 6.4 hours of continuous field operation at ~75% rated power on a full tank (7.5 gal / 28.4 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Cub Cadet Lawn Tractors Cub Cadet Tank L48 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Cub Cadet Lawn Tractors Cub Cadet Tank L48.
Converted Equivalents:
Horsepower (HP)22.5 hp
Kilowatts (kW)16.8 kW
Metric Horsepower (PS / CV)22.8 PS
Direct Competitor Comparison
Compare Cub Cadet Tank L48 against same-era industry alternatives in the same horsepower class.
