Cub Cadet Tank S6032 D
The Cub Cadet Tank S6032 D is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 1330 cc 81.2 ci engine. The rated power output is 31.2 hp 23.3 kW. Transmission: Hydro-Gear PK-12. Operating weight: 1850 lbs 839 kg.
Engine Power
31.2 hp
23.3 kW
Fuel & Capacities
14 gal*Dual 7-gallon tanks
53.0 L
Transmission
Hydro-Gear PK-12
Operating Weight
1850 lbs
839 kg
Cub Cadet Lawn Tractors Cub Cadet Tank S6032 D Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2010 - 2012
Tank S SeriesZero-turn mower |
|---|---|
2010 - 2012 | |
Tank S Series | |
Zero-turn mower | |
2010 - 2012 | |
|---|---|
Tank S Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Zero-turn mower | |
Cub Cadet Tank S6032 Engine | |
|---|---|
31.2HP Yanmar 1330cc 3-cyl diesel | |
Fuel tank | 14 gal*Dual 7-gallon tanks
53.0 L |
Engine details ...  | |
Cub Cadet Tank S6032 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Steering | differential power |
Drum brakes | |
Two-post foldable ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 54 inches
137 cm |
Weight | 1850 lbs
839 kg |
Front tire | 16x6.5-8 |
Rear tire | 24x12-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 40 |
Battery volts | 12 |
Engine
| 2010 - 2012
Tank S SeriesZero-turn mower |
|---|---|
2010 - 2012 | |
Tank S Series | |
Zero-turn mower | |
2010 - 2012 | |
|---|---|
Tank S Series | |
Zero-turn mower |
Engine Detail — 1330 cc / 81.2 ci Diesel
Manufacturer | Yanmar 3TNV82 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 1330 cc
81.2 ci |
Bore/Stroke | 3.23x3.31 inches
82 x 84 mm |
Power (gross) | 31.2 hp
23.3 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 2010 - 2012
Tank S SeriesZero-turn mower |
|---|---|
2010 - 2012 | |
Tank S Series | |
Zero-turn mower | |
2010 - 2012 | |
|---|---|
Tank S Series | |
Zero-turn mower |
Transmission — Hydro-Gear PK-12
Transmission | Hydro-Gear PK-12 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 2010 - 2012
Tank S SeriesZero-turn mower |
|---|---|
2010 - 2012 | |
Tank S Series | |
Zero-turn mower | |
2010 - 2012 | |
|---|---|
Tank S Series | |
Zero-turn mower |
Cub Cadet Tank S6032 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 24x12-12 |
Dimensions | |
|---|---|
Wheelbase | 54 inches
137 cm |
Length | 90 inches
228 cm |
Width | 62 inches
157 cm |
Height | 72 inches
182 cm |
Weight | 1850 lbs
839 kg |
Front tread | 49.5 inches
125 cm |
Rear tread | 58 inches
147 cm |
Attachments
| 2010 - 2012
Tank S SeriesZero-turn mower |
|---|---|
2010 - 2012 | |
Tank S Series | |
Zero-turn mower | |
2010 - 2012 | |
|---|---|
Tank S Series | |
Zero-turn mower |
60" Mower deck | |
|---|---|
Type | mid-mount Cub Cadet |
3-blade with hydraulic power lift | |
Cutting width | 60 inches
152 cm |
Cut height | 1 to 5 inch
2 to 12 cm |
Photos
Cub Cadet Tank S6032, left side.

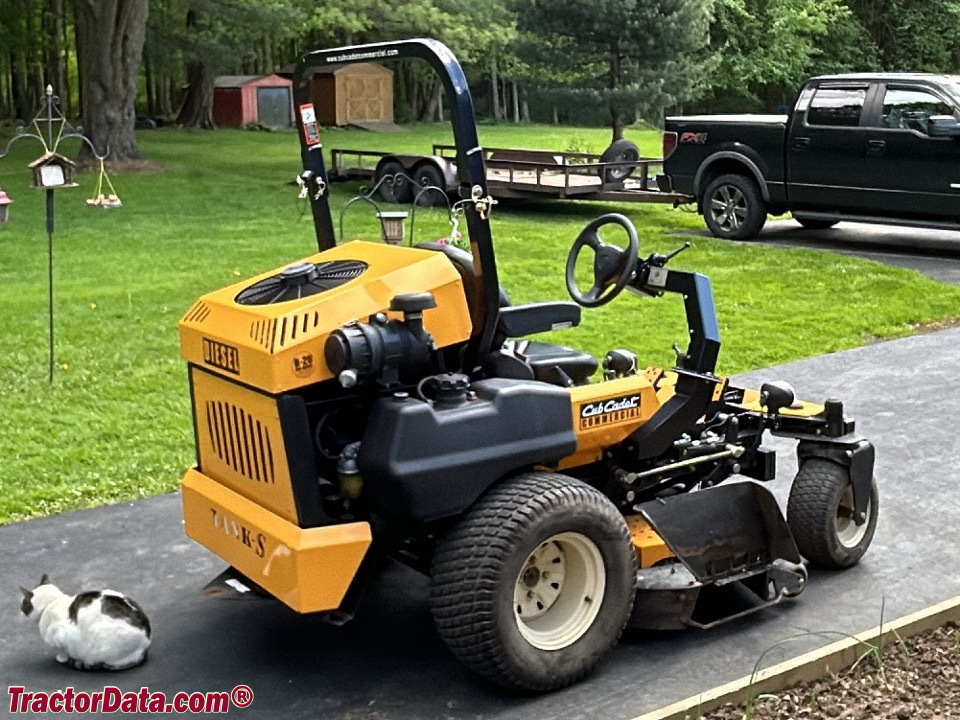

Cub Cadet Tank S6032, right rear view.

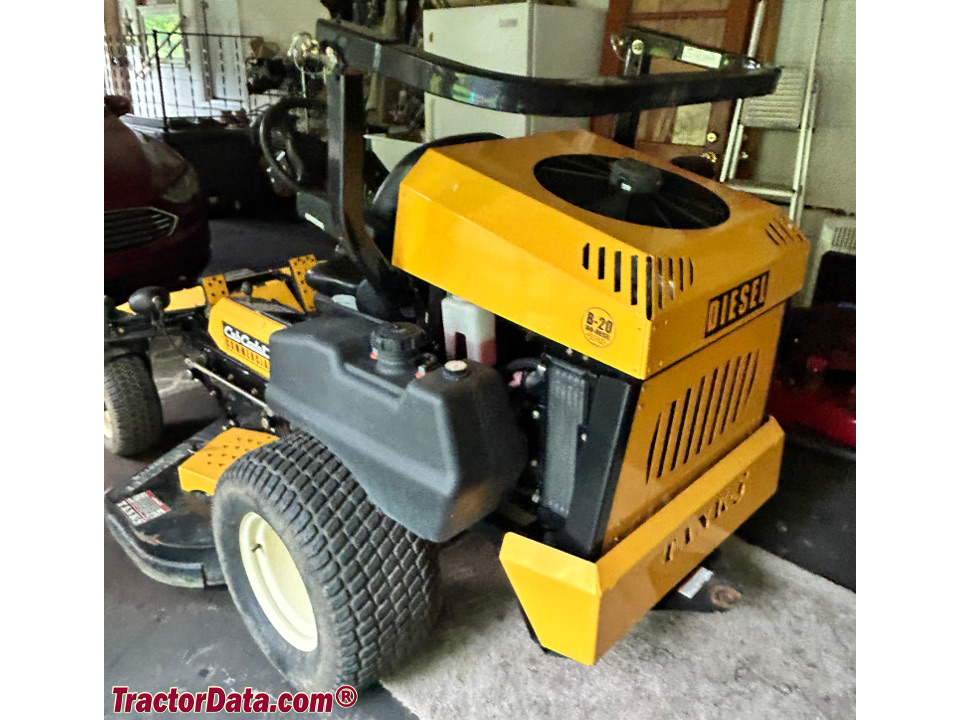

Cub Cadet Tank S6032, left rear view.
