Cub Cadet GT 3235
The Cub Cadet GT 3235 is a tractor produced by Cub Cadet Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The rated power output is 25 hp 18.6 kW. Transmission: infinite forward and reverse. Operating weight: 803 lbs (tractor only) 364 kg.
Engine Power
25 hp
18.6 kW
Fuel & Capacities
4.5 gal
17.0 L
Transmission
infinite forward and reverse
Operating Weight
803 lbs (tractor only)
364 kg
Cub Cadet Lawn Tractors Cub Cadet GT 3235 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004
3000 SeriesGarden tractor |
|---|---|
2004 | |
3000 Series | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Cub Cadet (a part of MTD) |
Garden tractor | |
Cub Cadet GT 3235 Engine | |
|---|---|
25HP Kohler 721cc 2-cyl gasoline | |
Fuel tank | 4.5 gal
17.0 L |
Engine details ...  | |
Cub Cadet GT 3235 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | power |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Weight | 803 lbs
364 kg |
Front tire | 16x7.5-8 |
Rear tire | 24x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery CCA | 435 |
Battery volts | 12 |
References | |
|---|---|
 | |
Outdoor Power Equipment published in 2004, by Cub Cadet |
Engine
Engine Detail — 721 cc / 44 ci Gasoline
Manufacturer | Kohler Command CH23 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled V-twin OHV |
Displacement | 721 cc
44 ci |
Power (gross) | 25 hp
18.6 kW |
Compression | 9.0:1 |
Idle RPM | 1200-3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Sparkplug | Champion RC12YC |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5.5 qts
5.2 L |
Dimensions
Cub Cadet GT 3235 Tires | |
|---|---|
Lawn/turf front | 16x7.5-8 |
Lawn/turf rear | 24x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 49.5 inches
125 cm |
Length | 72.25 inches
183 cm |
Width | 42 inches
106 cm |
Height | 43.6 inches
110 cm |
Weight | 803 lbs (tractor only)
364 kg |
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

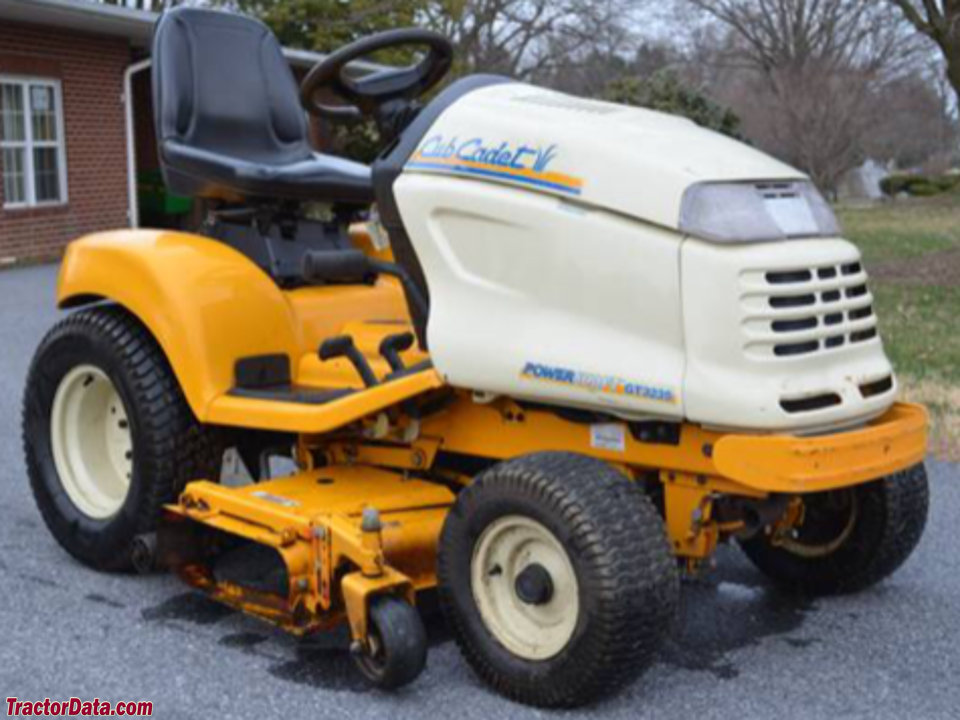

Cub Cadet GT 3235
